Application:
It is suitable for packing for powder: protein powder,premium whey powder, coffee powder, milk powder, chilli powder, dandelion powder, tea powder, spice powder, pesticide powder, veterinary drug powder, traditional Chinese medicine powder, flour, feed additives, and other powders.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
Different machine models are available to meet a wide range of premade bag sizes.
With an upgrade PLC control system, easy to operate on the touch screen of parameter setting.
Customized main machine structure for various kinds of bag shapes. Like doypack zipper bag, 4 side seal bag, stand up the bag and irregular bag, etc.

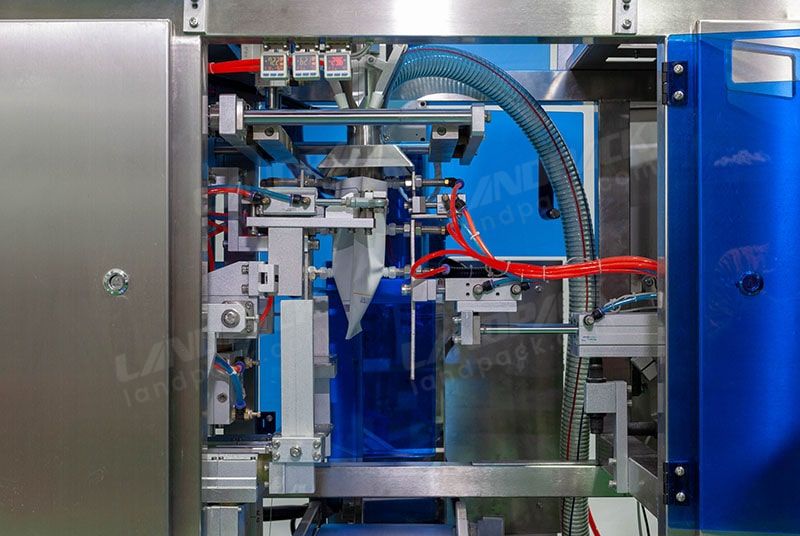

Multiple working stations to meet the fully automatic process of bag pickup, date printing, bag opening, filling, bag arranging, sealing, and output.

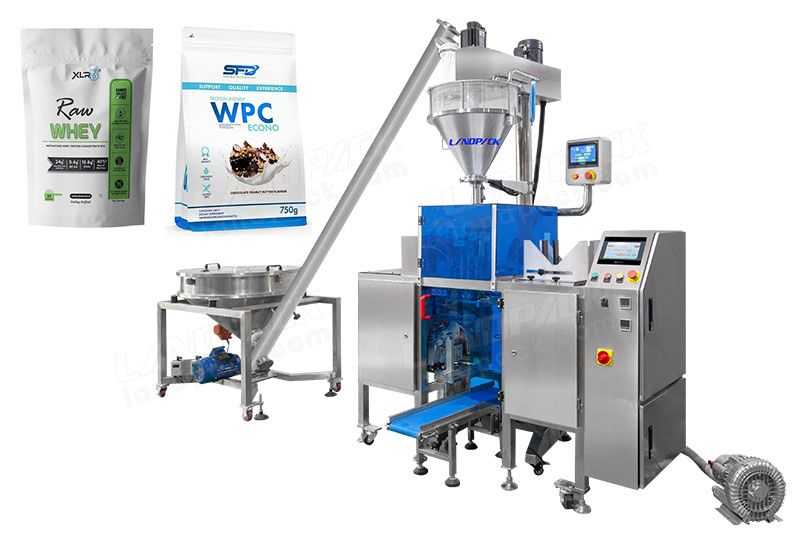

Machine machines can equip with a different metering system like a weigher, liquid pumps, auger filler, bucket chain for different kinds of product filling and packing in premade bags.
Model | LDB-300D |
Bag Material | Multilayer Composite Premade Bag (e.g.: PET/PE) |
Bag Type | 3 Side Seal Bag, Stand-up Bag |
Upgradable Bag Type | Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device) |
Size Range | 80mm≤W≤300mm 100mm≤L≤400mm |
Speed | 0~15bags/min |
Sealing Type | Straight grain, pitch is 1mm (Optional reticulate) |
Sealing Width | 10mm (5--20mm can be customized) |
Voltage | 220V, Single-phase, 50/60HZ, 1.2KW |
Air Pressure | 0.65Mpa |
Air Consumption | 0.3m³/min (Standard machine, no additional function) |
Body Dimension | 1770*600*1260mm |
Packing Dimension | 1860*710*1650mm (Export non-fumigation wooden case) |
