Application:
Suitable For Packing Puffed Food, Popcorn, Potato Chips, Crisps, Snacks, Candy, Biscuit, Sunflower Seed, Pistachio, Peanuts, Chocolate, Nuts, Pet Food, Small Metal Parts And Plastic Parts, Etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. This packaging solution is suitable for large production packing;
2. Economical, save costs, small footprint;
3. Horizontal belt or fastback conveying the material;
4. With large transportation, no crash, low noise and durable, reliable;
5. This whole packing system is with smooth and simple, easy to control settings for feeding, measuring, bag forming sealing, filling, labeling, output, realized high automatic connection between each procedure.

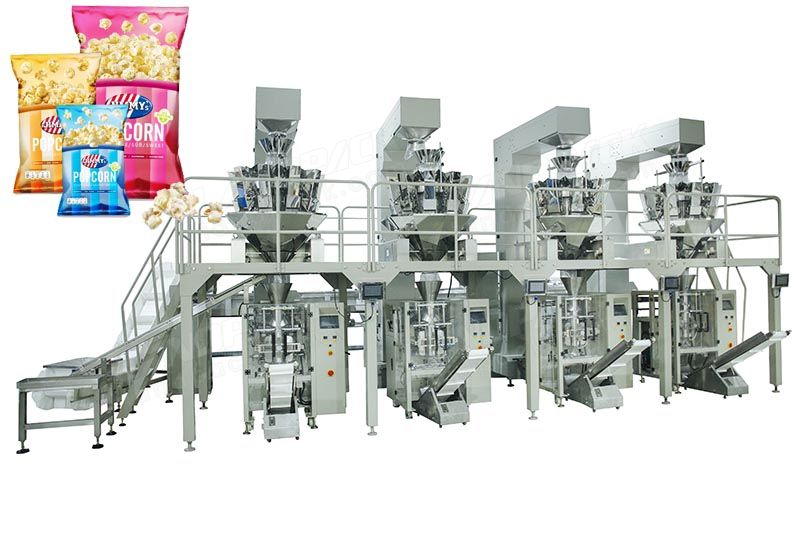

NAME | Automatic Popcorn Weighing And Packing Line |
Capacity | Max. 80-90 bags/min/machine according to the bag sizes, it is also affected by the quality of film and bag length |
Accuracy | ≤±1%, depending on the measuring equipment & materials |
Bag size | (L)50-330mm(W) 50-200mm |
Film width | Max. 420mm |
Bag type | Pillow bag mainly ,linking bags, punching hole bag,gusseted bag optional |
Pulling belt type | Double-belts pulling film, double servo |
Filling range | 10-1000ml |
Film thickness | 0.04-0.09mm |
Package material | BOPP/VMCPP,PET/PE,BOPP/CPP, PET/AL/PE etc |
Air consumption | 0.8Mpa 0.3m3/min |
Total power | 30 Kw (depend on the specific circumstances.) |
Voltage | Single phase220V, three phase380V, 50HZ(depend on the end users' country using, customized available) |
Air compressor | Pls contact us for sure (due to difference setting and usage) |
