Application:

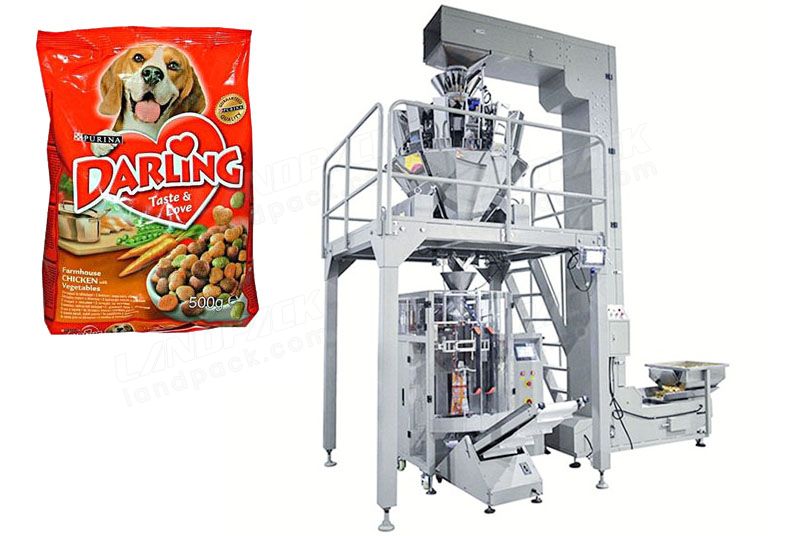

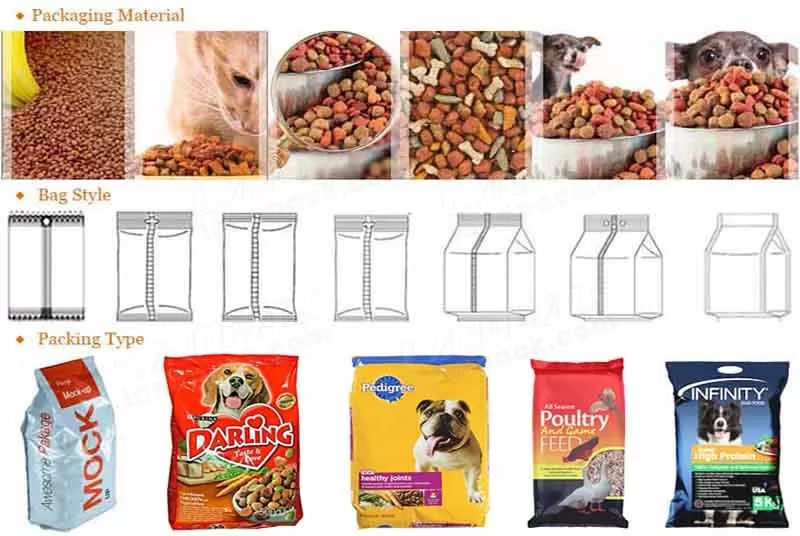

Suitable for automatic packaging of granular and solid products with high daily output, such as dog food, cat food, fish food, bird food, and other granular pet food.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
This packaging solution is suitable for large production packing.
Economical,save cost,small footprint.
Horizontal rewind conveying the material, with large transportion.
Feeding, Measuring, Bagging, Date printing, Charging(Exhausting) realising fully automation.
Imported PLC control system,colorful touch screen,easy operation, intuitionistic efficient.
Standard positioning with imported servo film transporting system and mark sensor.
With auto warning protection function to minimize loss.
High precision, high efficiency without crash the materials.

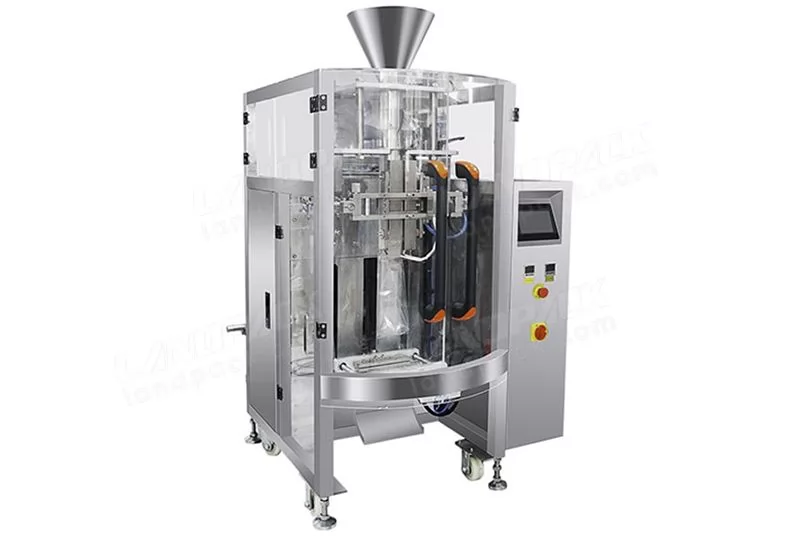

Model | LD-420A | LD-520A | LD-720A |
Film Width | Max.420mm | Max.520mm | Max.720mm |
Bag Length | 80-300mm | 80-350mm | 100-500mm |
Bag Width | 60-200mm | 100-250mm | 180-350mm |
Roll Diameter | Max.320mm | Max.320mm | Max.320mm |
Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Packing Speed | 5-60bag/min | 5-60bag/min | 5-55bag/min |
Power | 220V 50/60Hz 2KW | 220V 50/60Hz 3KW | 220V 50/60Hz 3KW |
Machine Size | (L)1217*(W)1015*(H)1343mm | (L)1488*(W)1080*(H)1490mm | (L)1780*(W)1350*(H)2050mm |
Machine Weight | About 650kg | About 680kg | About 750kg |
Option Device | Two synchronous belt device, air filling device, angle fold device,automatic rectifying device, hole-punching device, link bag device. |
