Application:

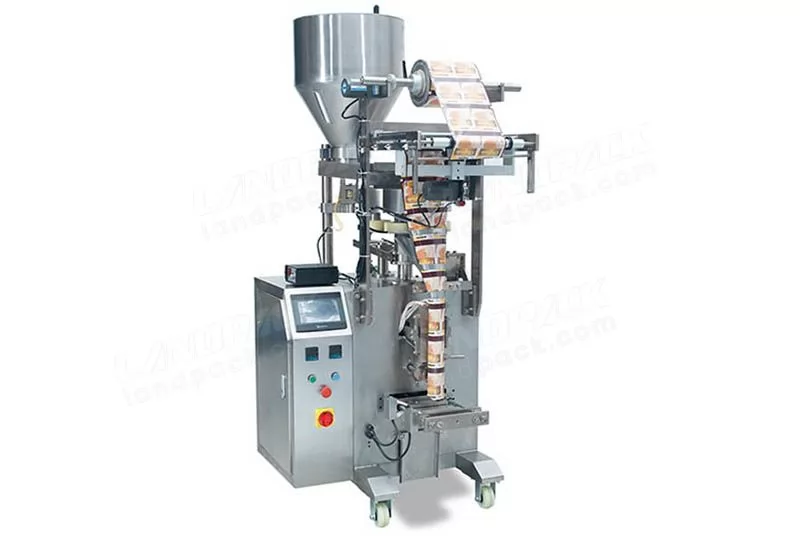

Automatic vertical grain packaging machine is suitable for packing all kinds of grain material, which such as dog food, cat food, fish food, bird food, and other granular pet food, small biscuits, seeds, beans, peanuts, cashew nut, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

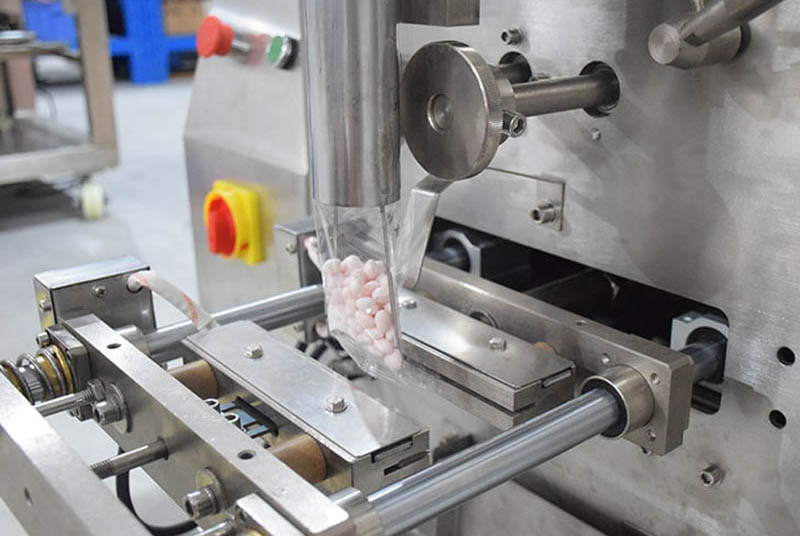

Products dosing, Filling, Laminate heat sealable pouch making and sealing.
Stainless steel 304 structure and surface.

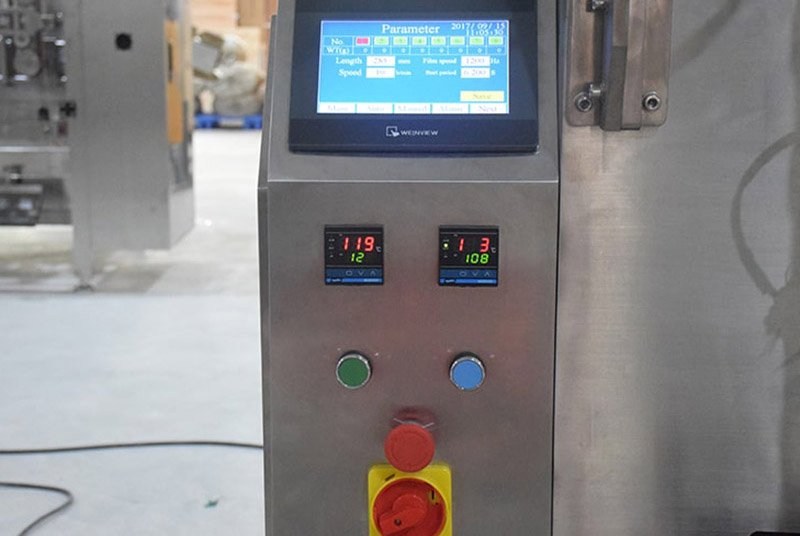

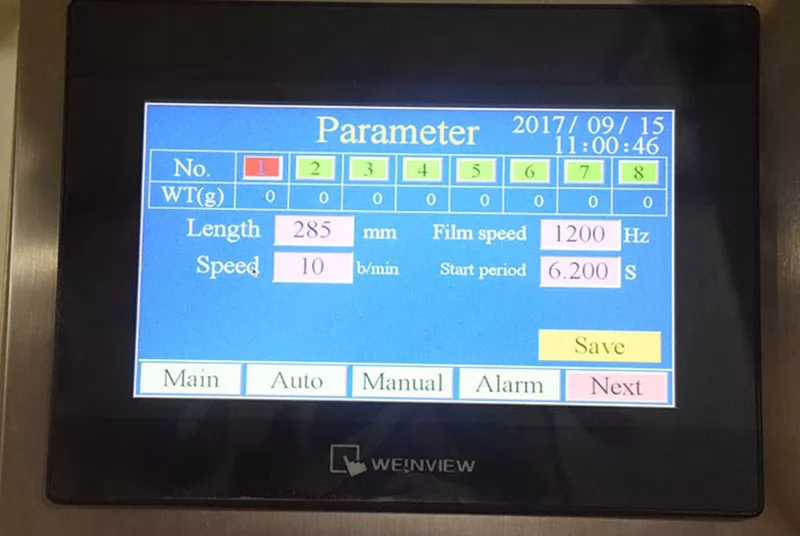

Weighing and Packaging PLC & HMI Control Integrated, More stable operation, Easy for parameter setting.
Simple changing of pouch former, to adapt different pouch size requirement.
Intelligent temperature controlling configuration, ensure the artistic and neat sealing.
Configure with packaging film pre-pulling device, to enable stable pouch making
Easy to change the packaging film.
Model | LD-320 | LD-380 |
Film width | 120-320mm | 180-380mm |
Bag length | 50-200mm | 60-280mm |
Bag width | 50-150mm | 60-180mm |
Diameter of film roll | Max.300mm | Max.320mm |
Packing speed | 35-70bag/min | |
Measuring range | 50-500ml | 50-750ml |
Film thickness | 0.04-0.07mm | |
Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
Machine weight | About 300kg | About 450kg |
