Application:
Commonly used in the filling and sealing of aluminum tubes, plastic tubes, and composite tubes in the cosmetics, pharmaceutical, food, adhesive and other industries.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:

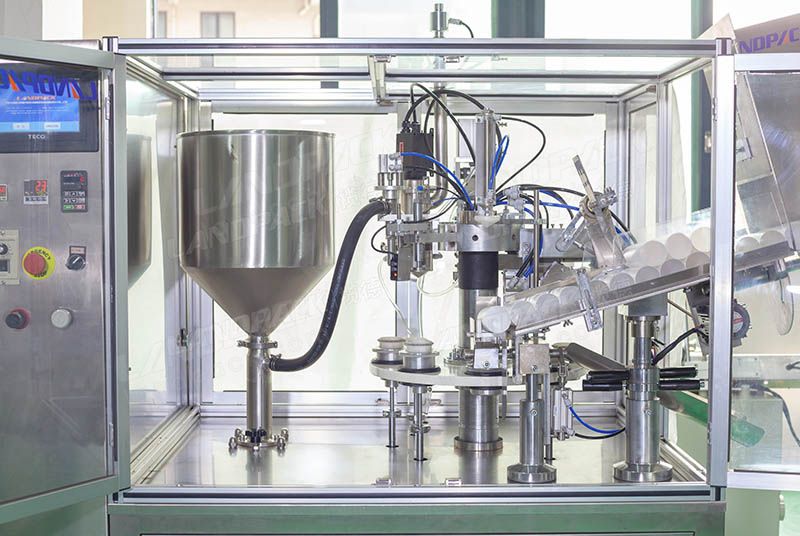

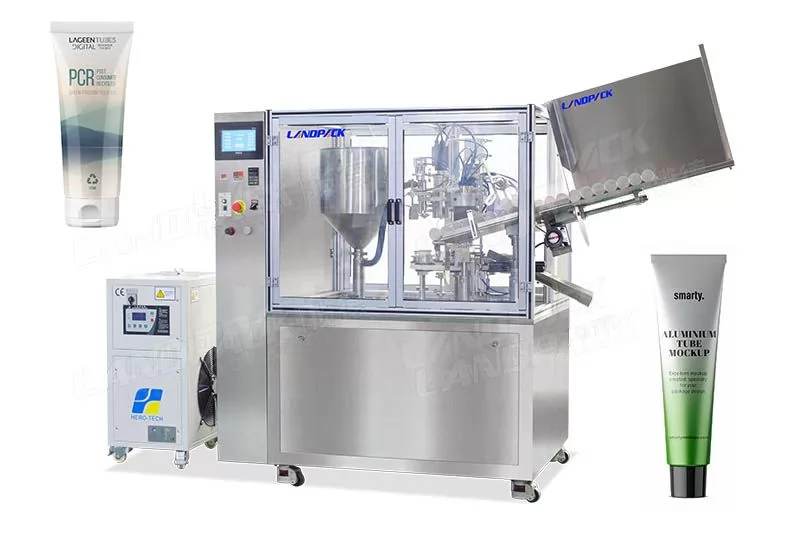

The machine adopts a fully enclosed dust cover, the machine body is made of SUS304 material, and the appearance is unique and beautiful;
The replacement of the base is suitable for filling and sealing of various specifications of pipes, the sealing appearance is neat and tidy, and the sealing is firm;
The filling speed and measurement accuracy are convenient and adjustable, with high adjustment accuracy and good stability;
The machine can be equipped with various filling methods of different specifications to meet the filling requirements of different viscosities;

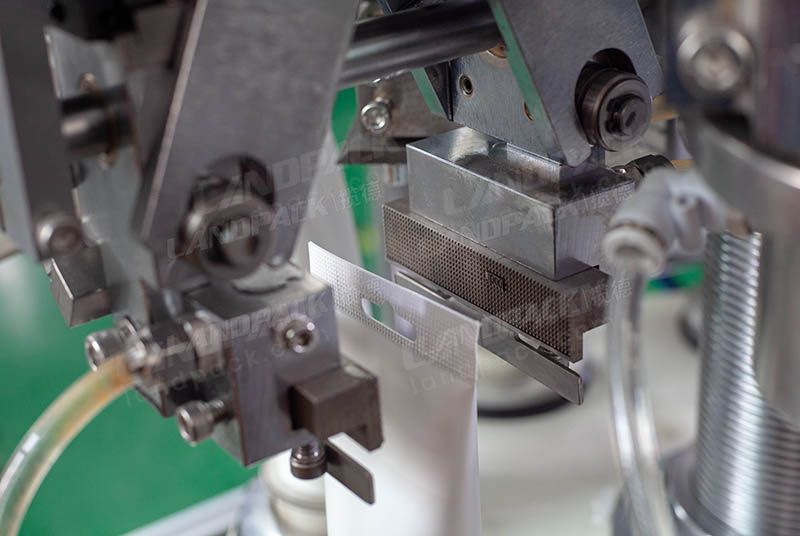

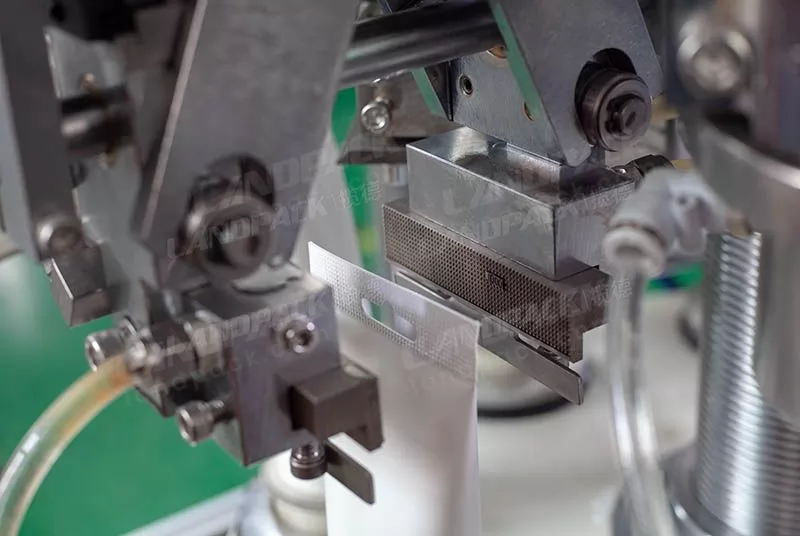

The internal heating is heated by Leister hot air gun, and the external water-cooling device is configured to cool down to make the sealing more beautiful;
All parts of the machine contacting materials are made of stainless steel SUS304;
Model | LFF-GFW-00 |
Yield | 20-40bottle/min |
Pipe Diameter | Φ10mm-Φ50mm (Customizable) |
Tube Height | 20mm-250mm (Customizable) |
Control system | PLC |
Power supply | 220V、50Hz |
Airconsumption | 0.3m³/min |
Dimension | 2180mm*930mm*1870mm(L*W*H) |
Equipment Material | 304 |
Weight | 750KG |
