Application:

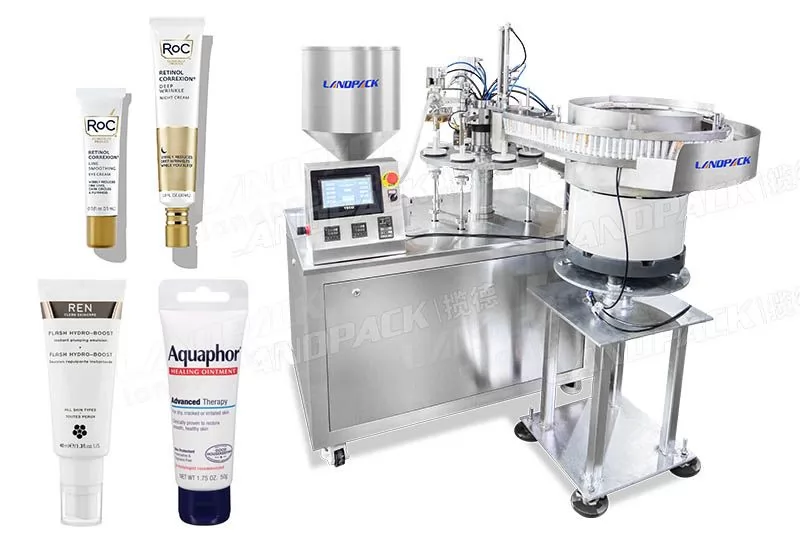

The plastic tube filling and Sealing machines are suitable for cosmetic, daily chemical, pharmaceutical food industries, used for enterprise product packaging container for hose, oil of the equipment can be, creams gels, or viscosity fluid filling material inside the hose.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
Feeding marking identification, filling, sealing, code printing and finished product output all conducted by a fully auto control system.
Auto picketage affected by photoelectric inductance.
Easy adjustment and dismantling
With easy and quick adjustment, it is suitable for using multiple kinds of soft tubes for filling.
The part contacting materials is made of 316L stainless steel, clean, sanitary and conforming to CMP for medicine manufacture.
With safety device, the machine is shut down when the door is opened and filling carried out only with tubes fed. Overload protection provided.
Model | LD-FW-018 |
Tube Material | Plastic Tube/ Laminated Tube/ Alumirnum Tube(customize) |
Tube Diameter | 15''-60'' |
Tube Length | 60-250mm(customize) |
Filling Range | 5-280ml/pcs(adjustable) |
Filling Accuracy | ≤±1% |
Speed | 50-60pcs/min(adjustable) |
Air Pressure | 0.55-0.65Mpa |
Motor Power | 2KW(380V/50Hz 3PH) |
Sealing Power | 3KW |
Dimension | 2850*1500*2200mm |
Weight | 1200kg |
