Application:

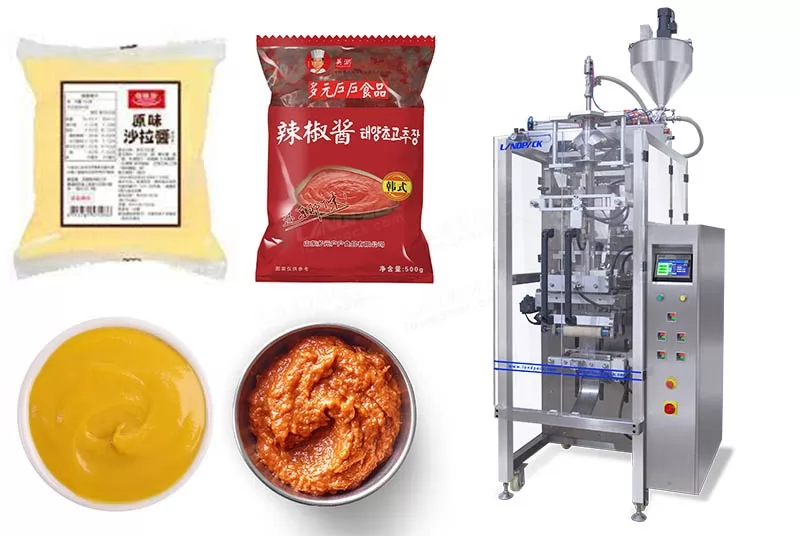

1.Suitable for sauces, ketchup, egg white, jam, mayonnaise, chili sauce, lotus seed paste, bean paste and other food stuffing as well as drinks of large bulk.
2.It is also suitable for Non-food oil, detergent, grease, industrial paste, etc,
3.Especially suitable for liquid vacuum packing, good for product preservation.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

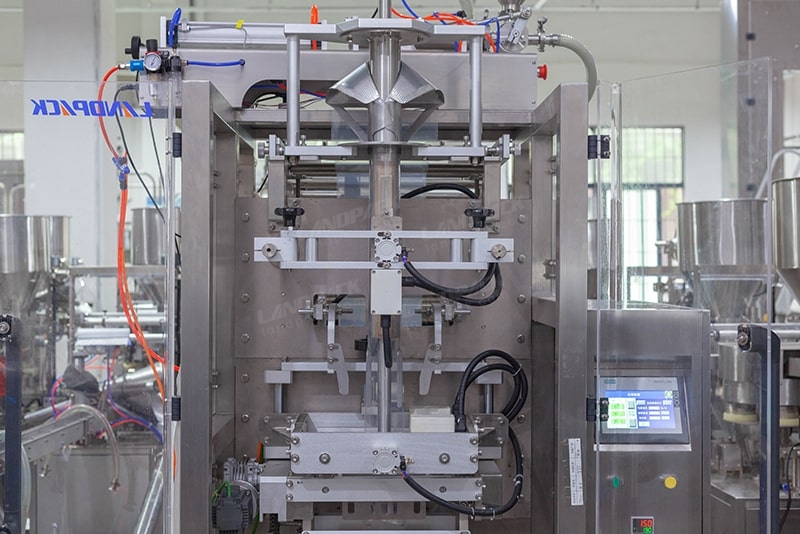

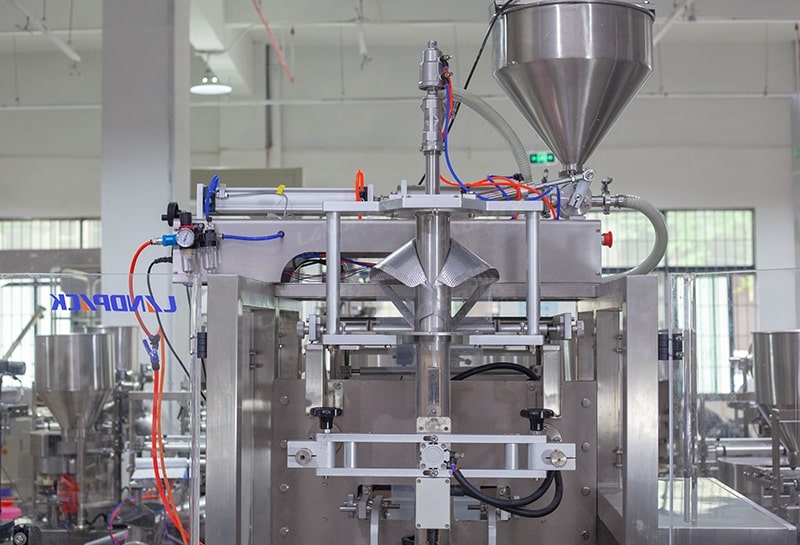

Using color touch-screen and digitalized management, has automactic stop and alarm advanced function when there is shortage of material or pouches.Thus it is easy to operate and convenient to maintain.

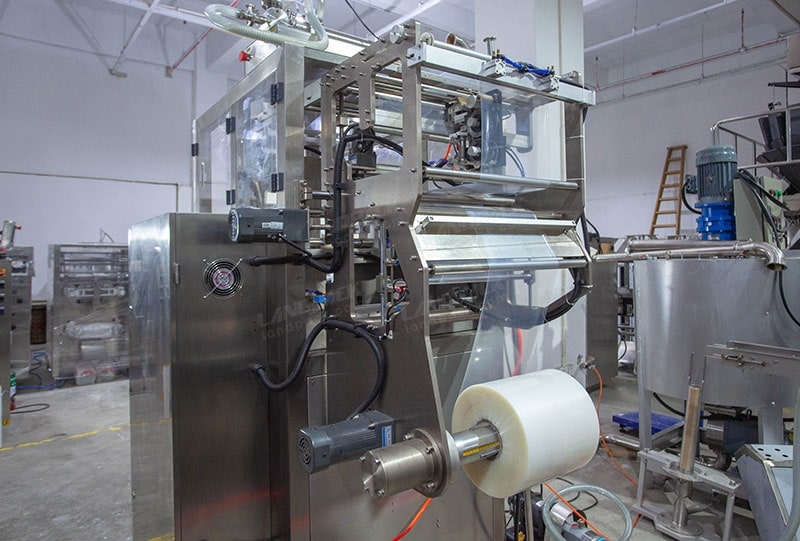

Adpoting Janpanses Panasonic PLC to draw the film, pneumatics to seal pouches, insures accuarte positioning, beautiful seal, so thatit helps to improve the operation stability.

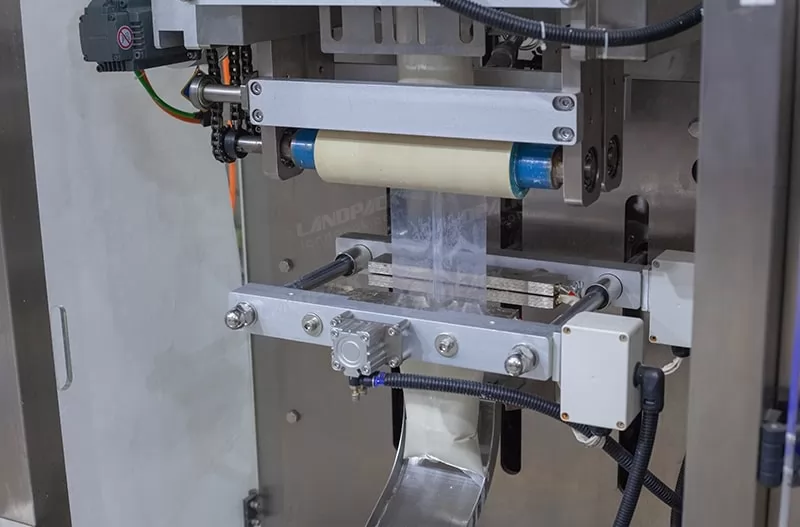

Double-roller to exhaust air by extrusion,which can eliminate the air completely to achieve airless package.
One time completion on bag-making,weighing and adjusting, bagging, sealing, cutting and packing.
Solid and elegant work doors are waterproof and protective.The machine will stop automatically to avoid accident during prodution when workers open the doors to touch the operation part.
The external frame and structrue are made of stainess steel,which is clean and hygienic, up to the indicator of food hygiene quality.
Accessories are produced by large-scale manufacturer with renowned brand, which has more stable performance.
The design is completely up to the food hygiene quality and safety standard.
Type | LD-420L | LD-520L | LD-720L |
Film width | Max.420MM | Max.520MM | Max.720MM |
Bag length | 80-300MM | 80-350MM | 180-350MM |
Bag width | 60-200MM | 100-250MM | 100-500MM |
Film thickness | 0.04-0.08 MM | 0.04-0.12MM | 0.04-0.12MM |
Packaging rate | 5-60Bag/Min | 5-60Bag/Min | 5-55Bag/Min |
Range of measurement | 150-1500ml | 2000ml | 4000ml |
Machine size | 1217*1015*1343MM | 1488*1080*1490MM | 1780*1350*2050MM |
Machine quality | 650KG | 680KG | 750KG |
Power | 220V 50/60Hz 2KW | 220V 50/60Hz 3KW | 220V 3KW |
