Application:
Thispaste filling machine is suitable for filling thick liquid like cream,honey,nail polish, wax candle,shoe oil,Cooling oil,soap,tiger balm,ointment,balm, Chemical (glass adhesive, sealant, white latex, etc.), lubricants, and plaster pastes for special industries.The equipment is ideal for filling high-viscosity liquids, pastes, thick sauces, and liquids.
Packaging Material:
Glass, Metal, Paper, Plastic, Wood, Other
Packaging Exambers:

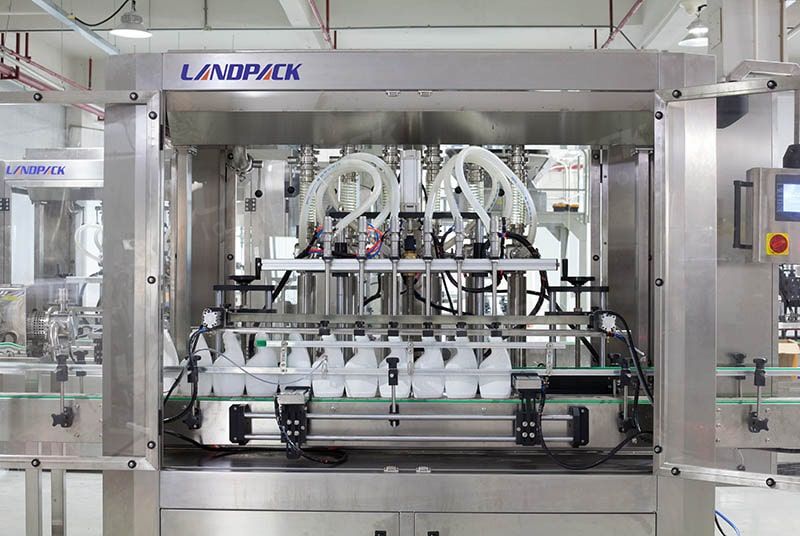

The equipment rack adopts closed structure, which is safe to operate and sanitary to use.
The high precision piston metering device of granular sauce filling machine is driven by servo motor, which is accurate and reliable;
It is made of SUS304 stainless steel, which meets the requirements of food production.
The equipment has its own material storage box, which can clean the pipeline independently, and it is convenient for cleaning and refueling.

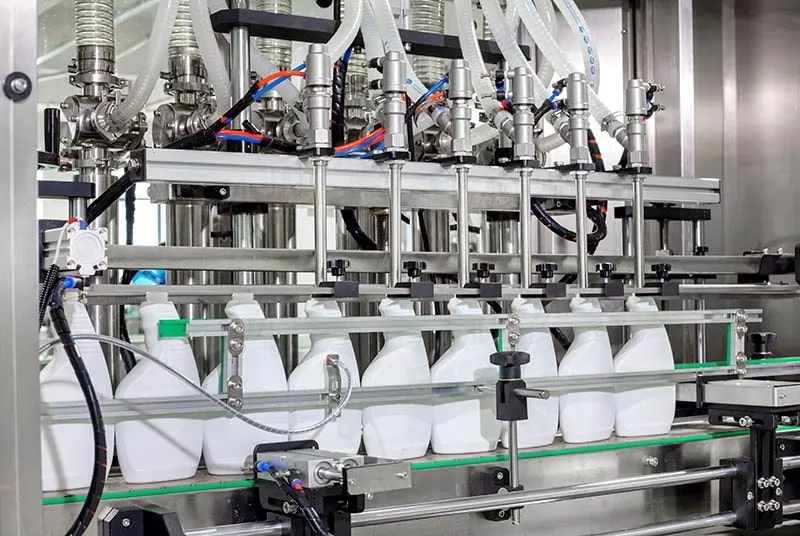

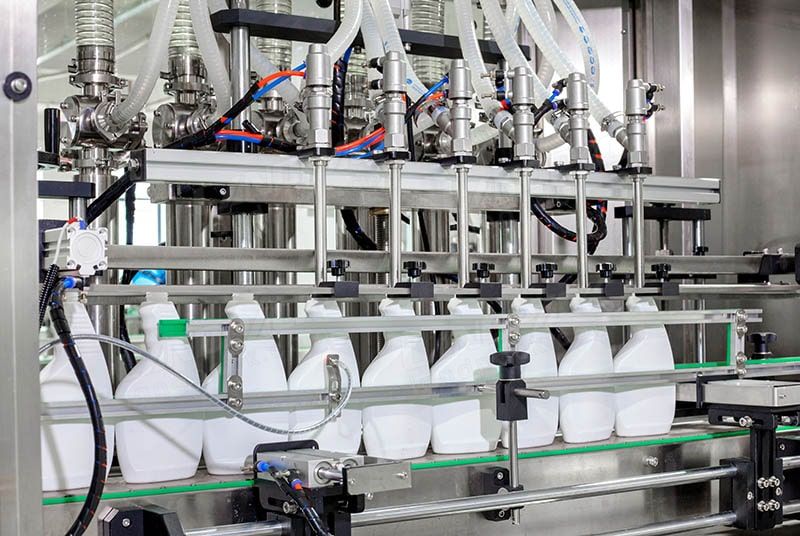

The filling head is equipped with a photoelectric system, which can accurately identify the positioning status of filling bottles, and realize filling with bottles, filling without bottles and no filling with few bottles.
Model | LD-LFZ06 | |||
Voltage (V/Hz) | 220V/380V; 50Hz/60Hz | |||
Filling heads | 6 heads(Customizable) | |||
Filling range | 100-1200ml(Customizable) | |||
Filling speed | About 16-35 bpm(Mainly depend on filling material) | |||
Measurement accuracy | ±1% | |||
Metering system | Piston pump | |||
Application bottle | Circular, round, flat, square, etc | |||
Dimention(L*W*H) | 1.8m*1.2m*2.0m | |||
Net weight | 650kg |
