Application:

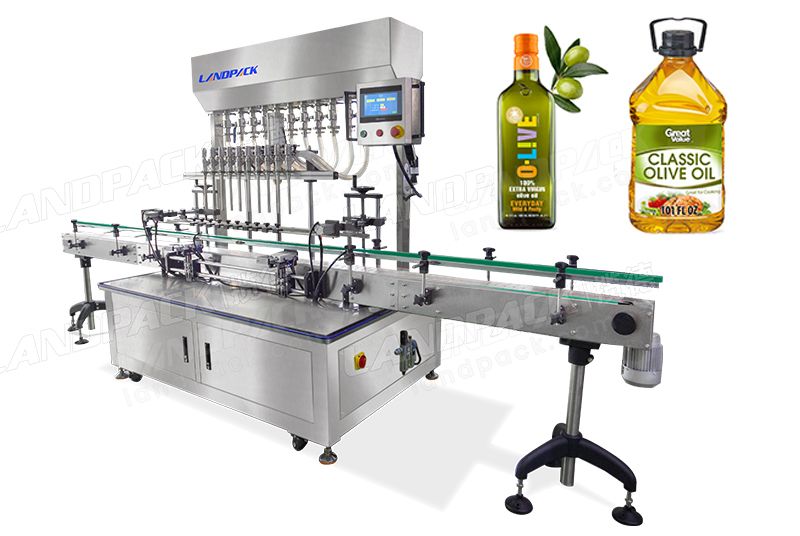

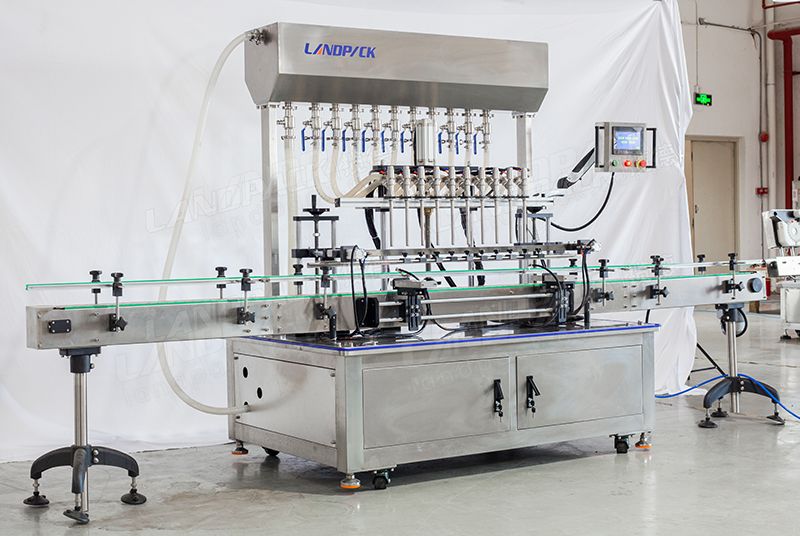

Fully automatic filling and capping machine, suitable for filling liquids in medicine, food, cosmetics and other industries.
Examples:
syrup, sauce, olive oil, fruit juice, etc.
Packaging types:
bottles, cans, barrels.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Sample:
1, 304 Stainless steel heavy duty stainless steel welded C frame.
2, All parts contact with material is SUS316, sanitary, Teflon, Viton and hoses per your requirements.
3, Real time adjustability.

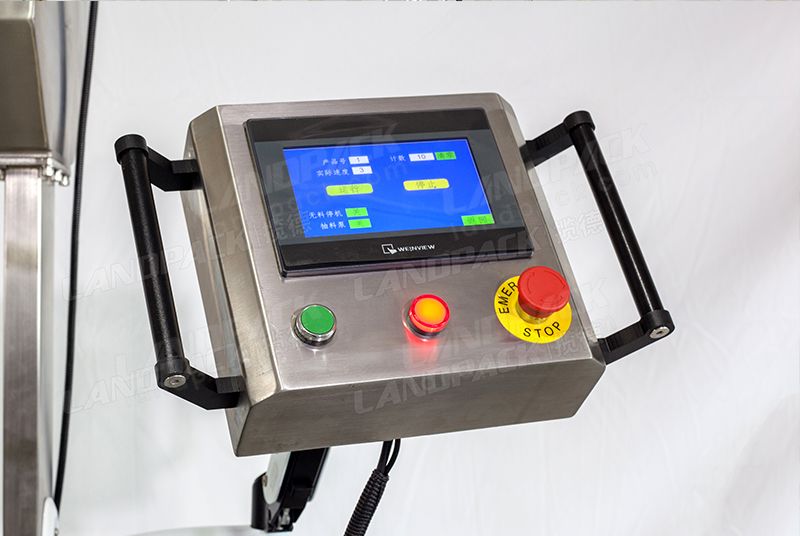

4, No bottle no fill, PLC control
5, Accurate filling volume, within ±1% and a total bottle counter.
6, Easy to maintain, no special tools are required.
7, Special seals or hoses by order.
8, Blocked nozzles for products that tend to string and drip.
9, Diving nozzles for bottom up filling of foaming products.
10, Bottle mouth localizer.
11, The filling head can also be added to suit your special need.
Filling volume | 100-5000 ml (Can be customized according to your requirements) |
Filling speed | 2000-2200b/h for 500ml |
Filling precision | 1ml |
Filling head | 2/4/6/8/10(Can be customized according to your requirements) |
Bottles size | 40-100mm(diameter); 80-300mm (height) |
Air pressure | 0.6-0.8Mpa |
Weight | 700kg |
Voltage | 220V/110V; 50hz/60hz |
