Application:
Suitable for packing all kinds of liquid, fluid, and paste material, such as mayonnaise, chili sauce, jam, paste, juice, edible oil, sauce, oil, honey, ketchup, daily necessities, medicine, etc.
Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Bottle/can/jar weight
3. Bottle/can/jar dimension
4. Bottle/can/jar material
Packaging Exambers:

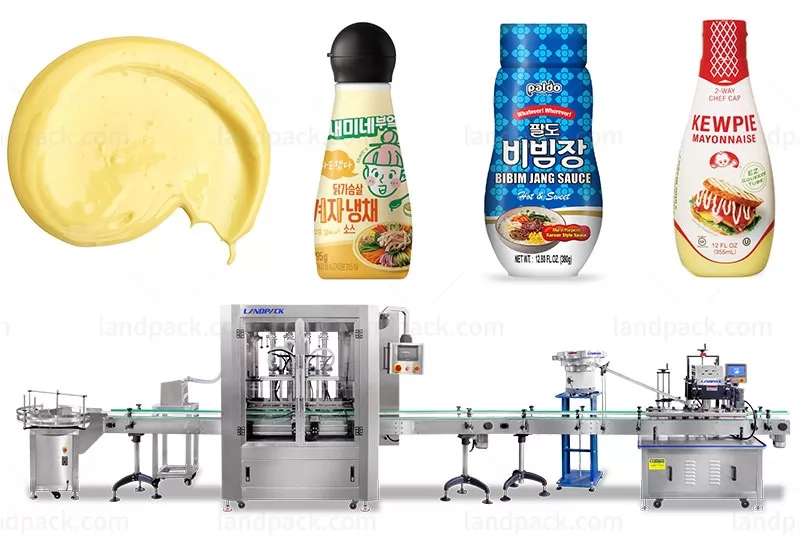

1. Machine has nice appearance and reasonable structure, it's currently the most advanced new design sauce filling machine, machine can be customized with 4/6/8/12/etc filling heads according to customer's production capacity.

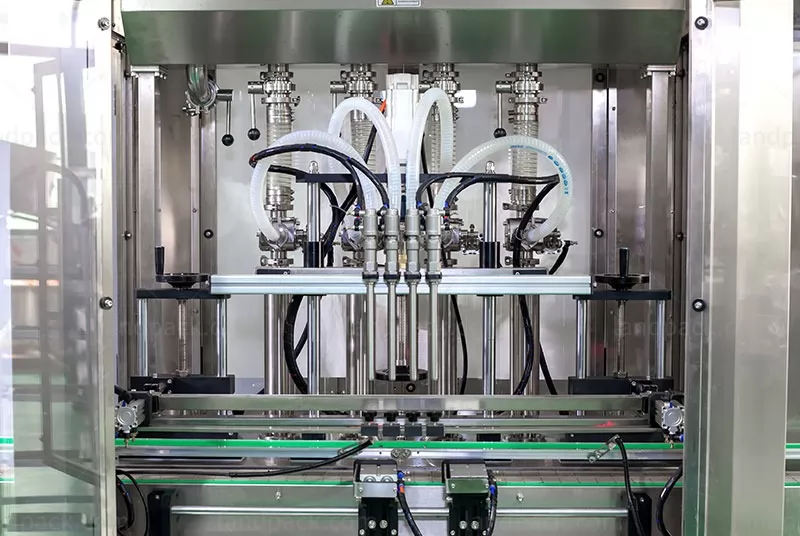

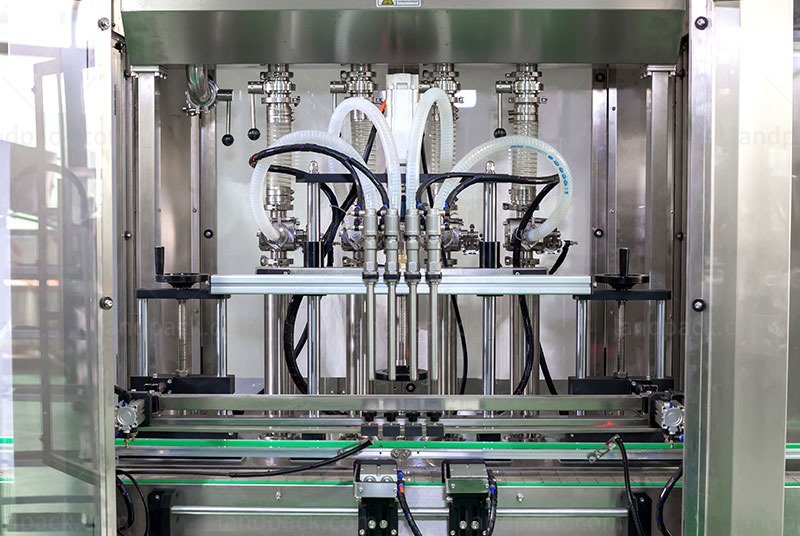

2. Adopts positive displacement plunger pump for filling (when the filling volume difference is large, the corresponding pump body needs to be replaced), can do overall adjustment of all the pumps, can also do slight adjustment of a single pump, quick and convenient.
3. PLC control system, color touch screen display, filling volume can be adjusted directly on touch screen , easy to operate.
4. The machine comes with heating and stirring system, so that make the product more uniform, better mobility, easy to fill
5. Has function of no bottle no fillig, frequency control, automatic counting.
6. Machine shell is made of 304 stainless steel, meets GMP standard.
Model Name | LFZ-06 | LFZ-08 | LFZ-10 |
Filling Nozzle | 6 | 8 | 10 |
Production Speed | 20-35Bpm | 30-40Bpm | 40-50Bpm |
Filling Accuracy | 200ml: +/-1%, 200-5000ml: +/-0.5% | ||
Filling Range | 50-5000ml | ||
Power Supply (without heating) | 1Kw | 2kw | 2.5kw |
Power Supply | 220V/380v 50hz Three phase | ||
Air Pressure | 0.6-0.8Mpa | ||
Applicable Bottle Shape | Round, Flat, Oval, Irregular, Square, Jar, Can, etc. | ||
Bottle Material | HDPE, Aluminum, Plastic, Glass, etc. | ||
Dimension (mm) | 4000*1320*2090 | 4000*1320*2090 | 4000*1320*2090 |
Weight | 650kg | 800kg | 800kg |
