Application:
Suitable for packing all kinds of liquid, fluid, and paste material, such as mayonnaise, ketchup, chili sauce, jam, paste, juice, edible oil, sauce, oil, honey, daily necessities, medicine, etc.
Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Bottle/can/jar weight
3. Bottle/can/jar dimension
4. Bottle/can/jar material
Packaging machine:
1. This production line adopts automation technology, imported PLC, imported inspection light eye, frequency converter and other electrical appliances, and pneumatic components. It has the characteristics of high efficiency, intelligence, wide adaptability, and good stability, and is well-received by users;
2. The filling machine uses food-specific hoses and does not contain plasticizers, which is suitable for medicine, food, and other industries;

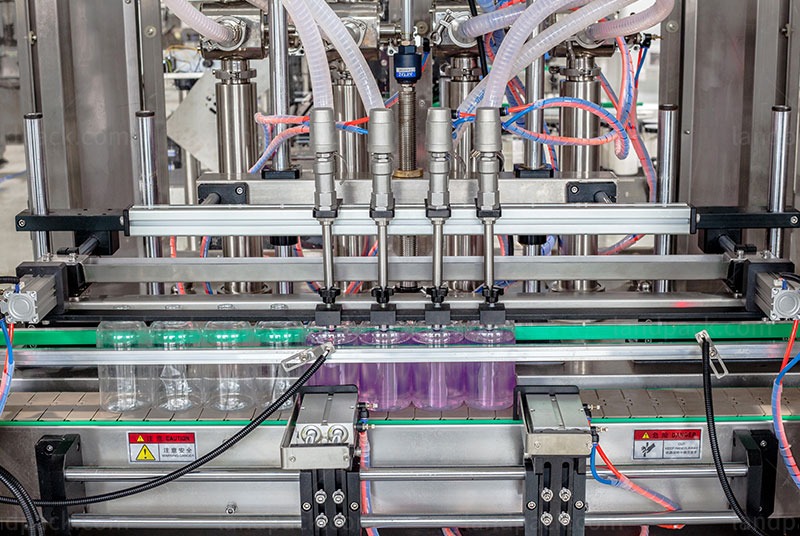

3. The piston cylinder of the filling machine adopts a grinding and wear-resistant metering cylinder, which can automatically compensate the piston seal for long life;

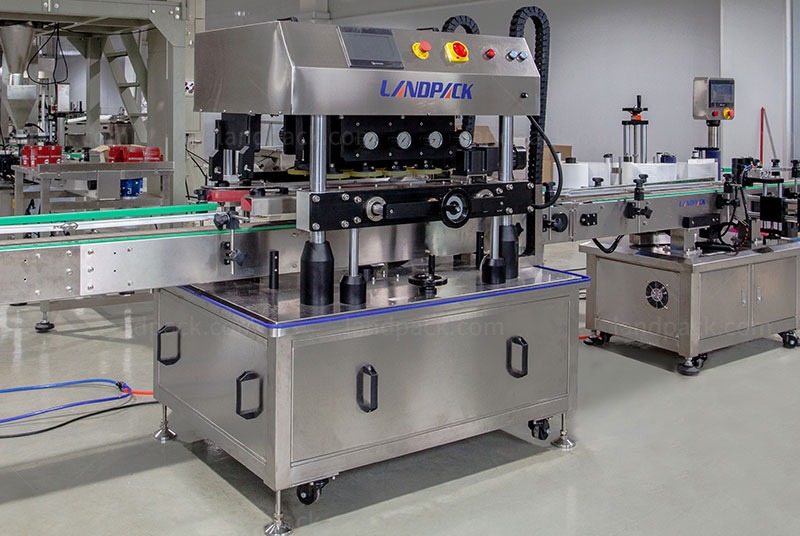

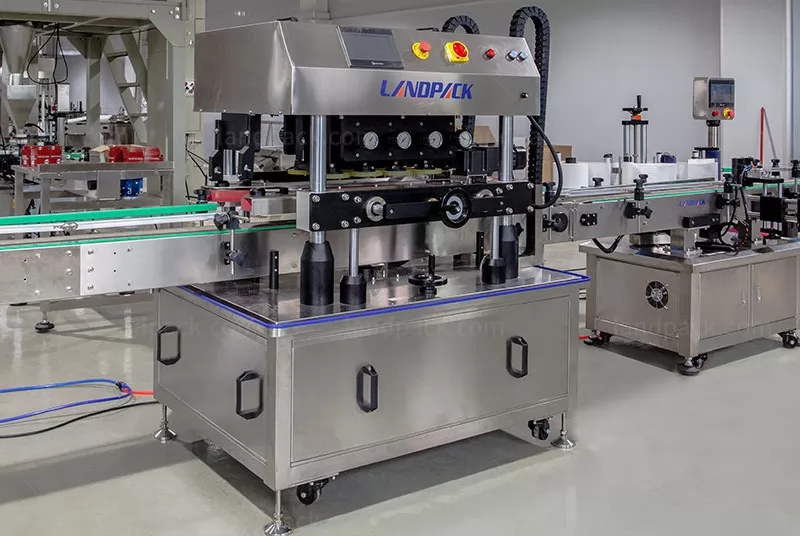

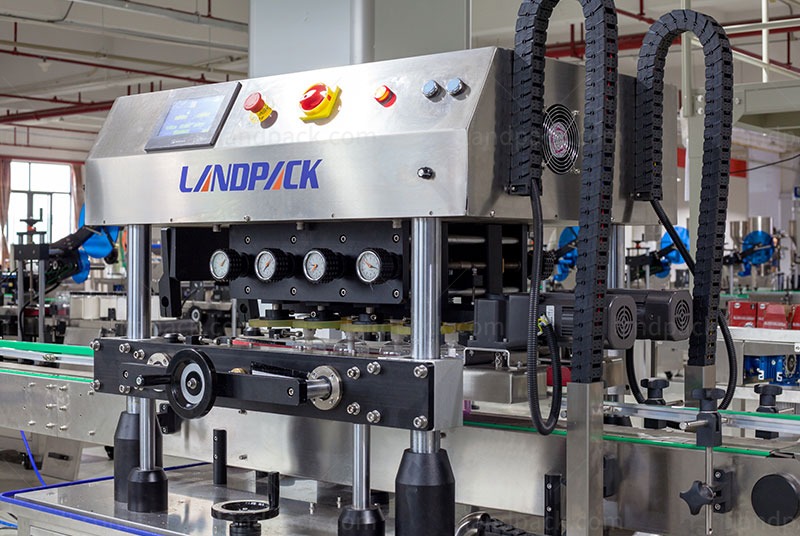

4. The capping machine uses a manipulator to grasp the cap, press the cap, and control the capping torque through a servo motor to achieve the capping effect;
5. This type of capping machine has uniform force for capping, easy to adjust the force, and it is not easy to wear the cap;
6. The production line has stable operation, low noise, convenient maintenance, fully meets GMP certification requirements, and is widely used in medicine, food, cosmetics, and other industries;
7. The whole machine is made of corrosion-resistant stainless steel, which is easy to clean and disinfect, and meets the national regulations and requirements on food machinery and food hygiene;
8. Imported PLC and 7-inch touch screen man-machine interface, production parameterized control, simple operation;
9. This kind of production line is relatively advanced, can be improved according to the different requirements of customers, and can be made into equipment that fully meets customers' needs. The plexiglass cover of the whole machine is designed to prevent impurities from entering the filling material, which is safe and hygienic;
10. Customize the size of the whole line according to the plant space;
11. Can switch different capacity bottle filling, simple operation, strong flexibility;
12. Automatic filling, capping, labeling, screen memory parameters, change the bottle type, change the parameters can be.
Model | LFH-TJ-04 |
Filling Range | 50-1000ml (customizable) |
Filling Speed | 15-25 bottles/min (refers to the range of 100-500ml) |
Measurement Accuracy | ±1% |
Control system | PLC |
Power | 220V, 50Hz, 5.5KW |
Working Pressure | 0.6-0.8 m³/min |
Equipment material | 304 |

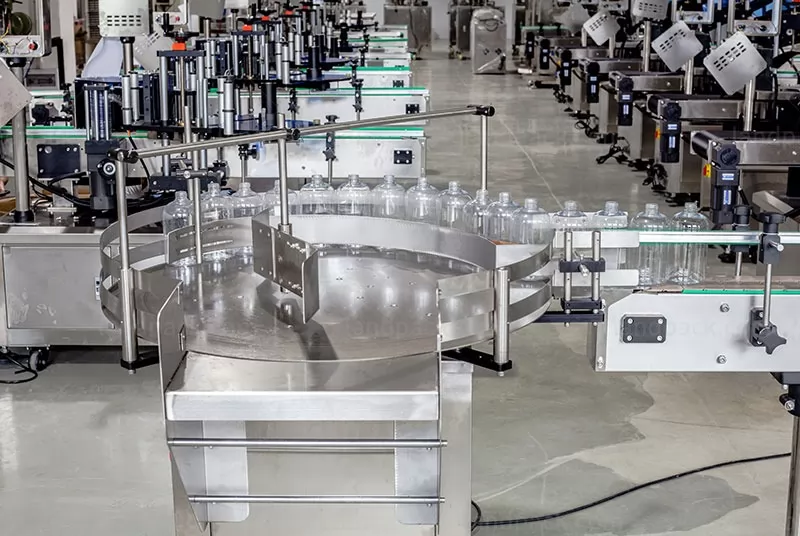

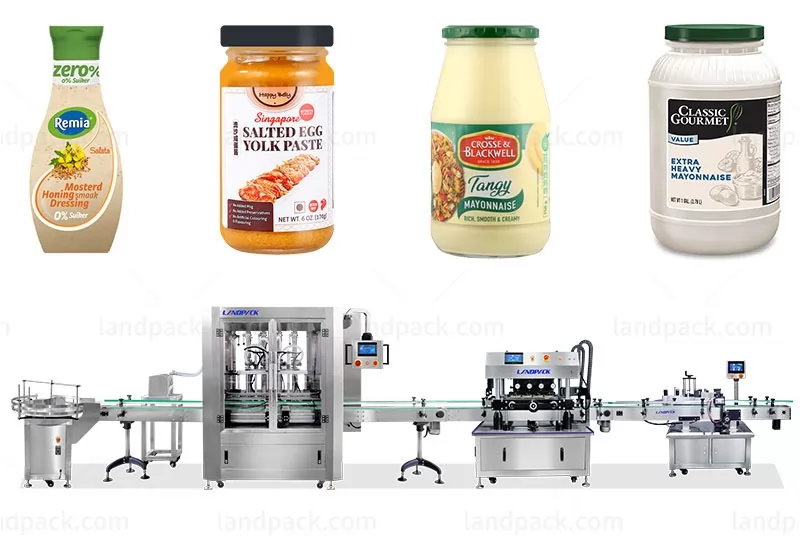

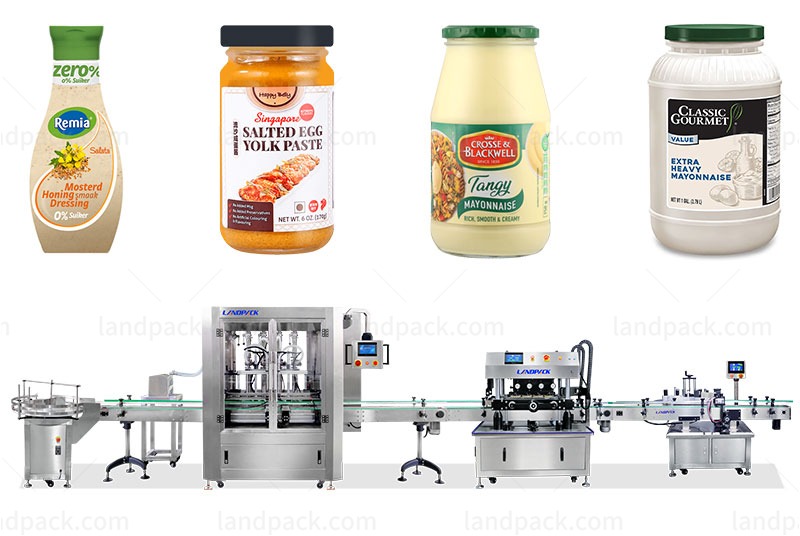

Description of the main packaging process | Unscramble bottles → Filling → Four-wheel screw cap → Labeling |
