Application:
Suitable for mayonnaise, sauces, ketchup, egg white, jam, chili sauce, lotus seed paste, bean paste and other food stuffing as well as drinks of large bulk.
Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Packaging Samples:

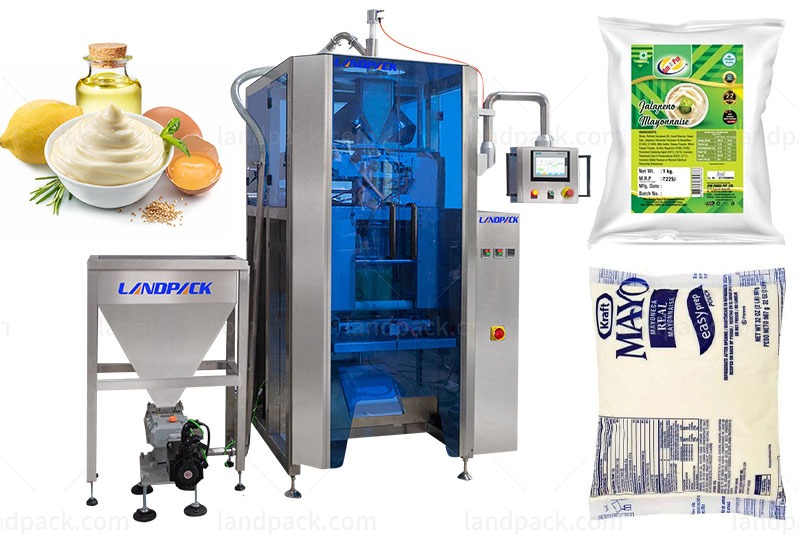

Filling packaging machine, suitable for miso soup, lotus paste filling, jam, etc.
Squeeze the film and squeeze the air to better preserve the material.

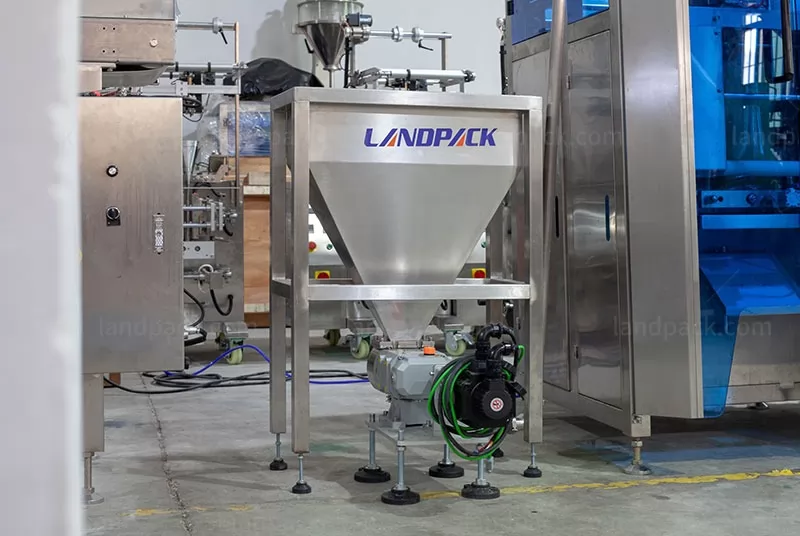

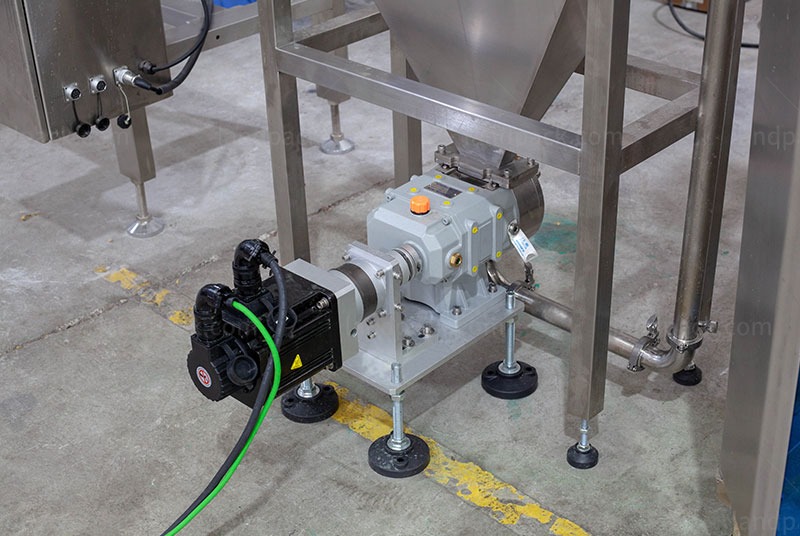

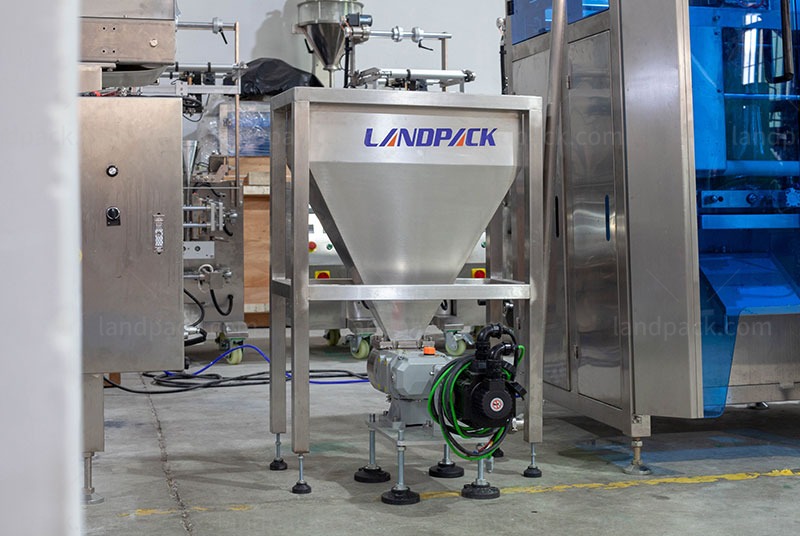

Servo rotor pump filling system, suitable for general liquid and viscous sauce packaging.
Products dosing, Filling, Laminate heat sealable pouch making and sealing.
Stainless steel 304 structure and surface.
Weighing and Packaging PLC & HMI Control Integrated, More stable operation, Easy for parameter setting.

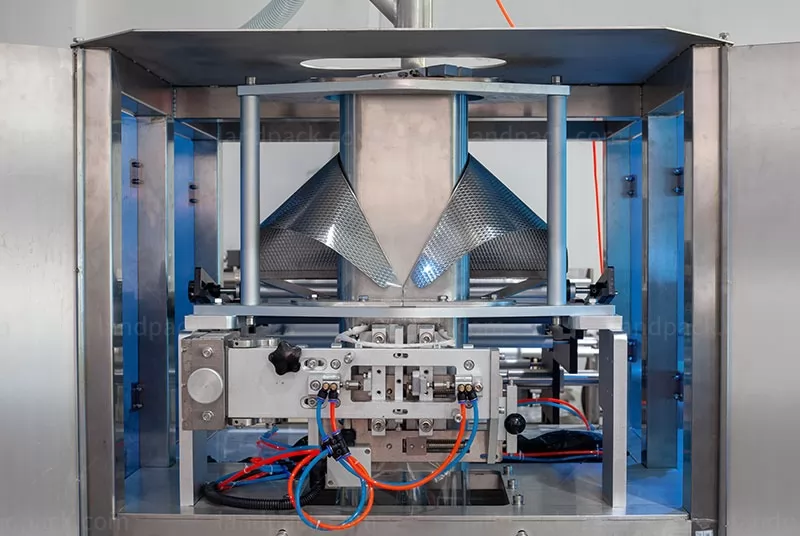

Simple changing of pouch former, to adapt different pouch size requirements.
Intelligent temperature controlling configuration, ensure artistic and neat sealing.
Configure with packaging film pre-pulling device, to enable stable pouch making.
No film no filling, and easy to change the packaging film.
Type | LD-420L | LD-520L | LD-720L |
Film width | Max.420MM | Max.520MM | Max.720MM |
Bag length | 80-300MM | 80-350MM | 180-350MM |
Bag width | 60-200MM | 100-250MM | 100-500MM |
Film thickness | 0.04-0.08 MM | 0.04-0.12MM | 0.04-0.12MM |
Packaging rate | 5-60Bag/Min | 5-60Bag/Min | 5-55Bag/Min |
Range of measurement | 150-1500ml | 2000ml | 4000ml |
Machine size | 1217*1015*1343MM | 1488*1080*1490MM | 1780*1350*2050MM |
Machine quality | 650KG | 680KG | 750KG |
Power | 220V 50/60Hz 2KW | 220V 50/60Hz 3KW | 220V 3KW |
Después de recibir su consulta, le enviaremos la cotización lo antes posible.
