Application:
Suitable for packing all kinds of liquid, fluid, and paste material, such as mayonnaise, ketchup, chili sauce, jam, paste, juice, edible oil, sauce, oil, honey, daily necessities, medicine, etc.
Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Bottle/can/jar weight
3. Bottle/can/jar dimension
4. Bottle/can/jar material

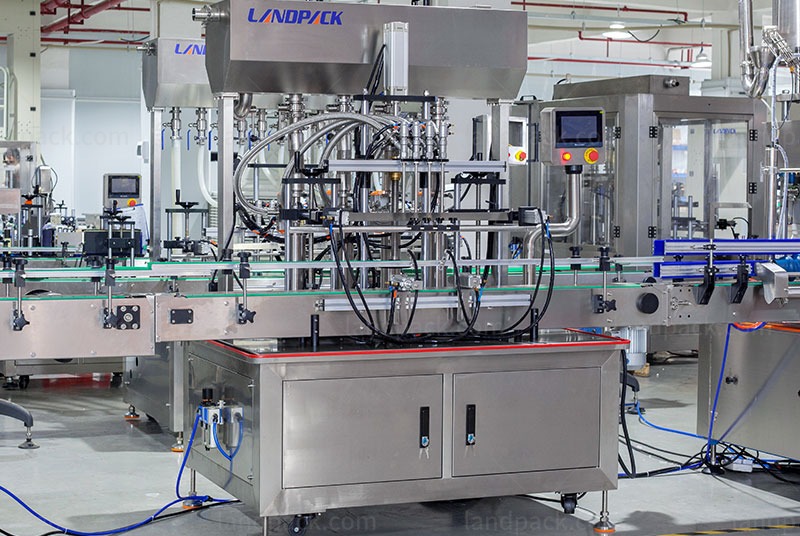

Packaging machine:
1. According to different outputs, filling machines with different head numbers can be equipped. with 2 heads 4 heads 6 heads 8 heads.

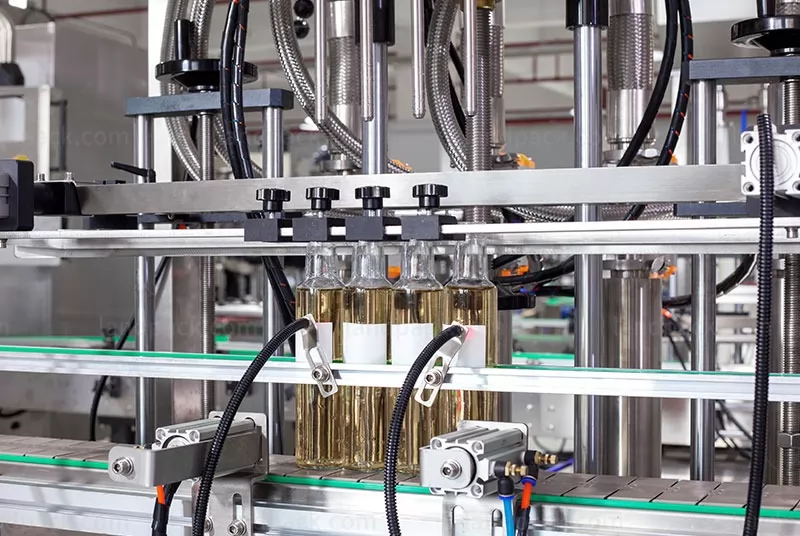

2. The equipment filling valve adopts a unique design and is equipped with a vacuum suction device, which can realize no leakage during the filling process.
3. This production line adopts automation technology, imported PLC, imported inspection light eye, frequency converter and other electrical appliances, and pneumatic components. It has the characteristics of high efficiency, intelligence, wide adaptability, and good stability, and is well-received by users.
4. The filling machine uses food-specific hoses and does not contain plasticizers, which are suitable for medicine, food, and other industries.

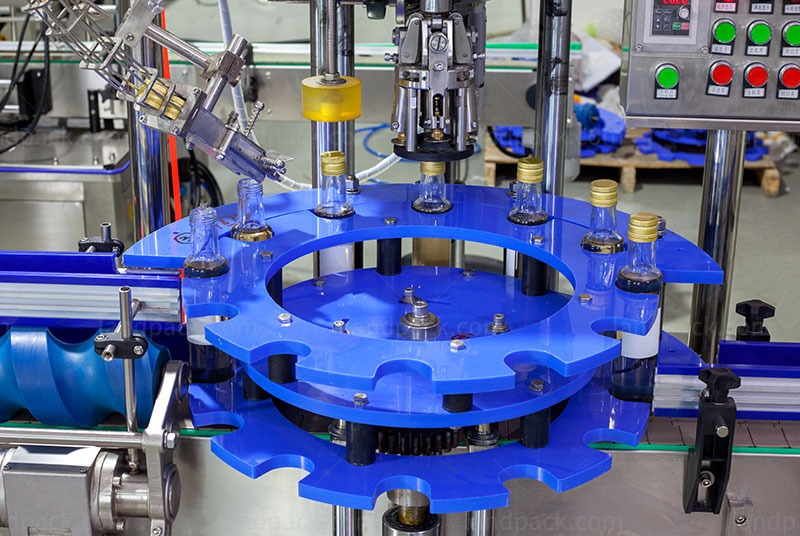

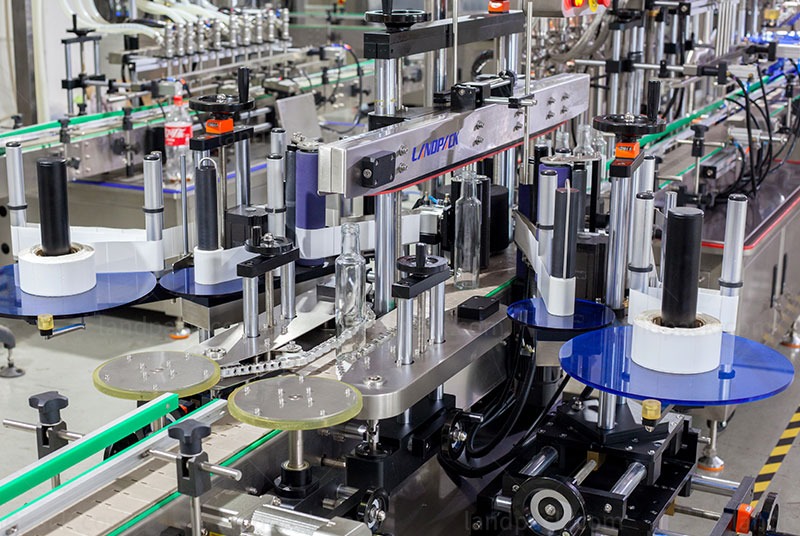

5. Automatic filling, capping, labeling, screen memory parameters, change the bottle type, change the parameters can be.
6. This kind of production line is relatively advanced, can be improved according to the different requirements of customers, and can be made into equipment that fully meets customers' needs. The plexiglass cover of the whole machine is designed to prevent impurities from entering the filling material, which is safe and hygienic.
Model | LD-GZX028 |
Bottle Material | PET / PP / PE / Glass / Metal |
Bottle Shape | Round / Square/ Unique Shape |
Filling Range | 0.2-1L or 0.5-5L or 5-25L |
Filling Heads | 4-12 |
Production Capacity | 700-4000 BPH |
Gas Requirement | 0.6-0.8MPa |
Filling precision | 3 |
Working voltage | AC220V/380V 3phase 50/60Hz, 2.2-6.5K |
User Ambient Conditions | Temperature: 10~40℃; Humidity: No dew |
Packing size | 1700*1500*2200mm Specific to the actual prevail |
