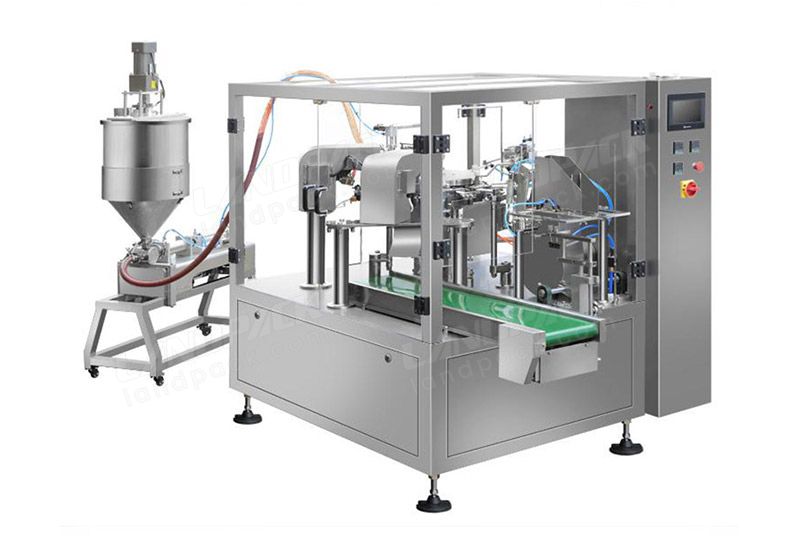

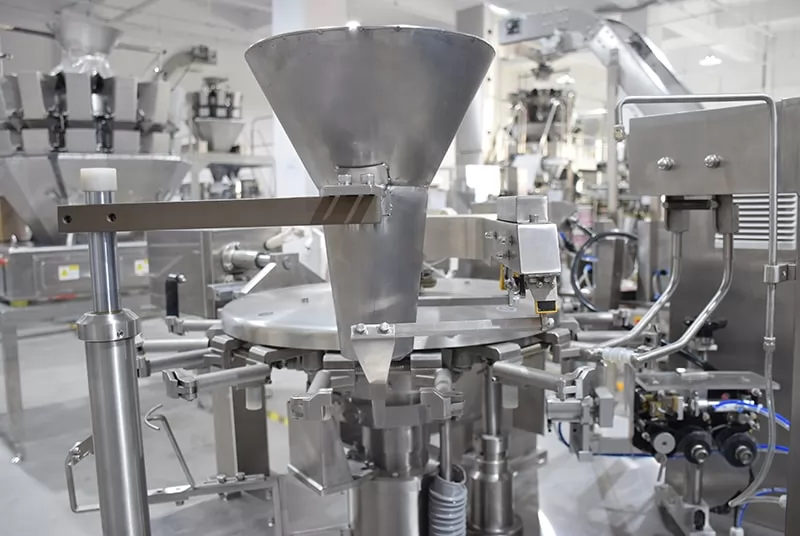

Automatic Liquid Premade Pouch Rotary Packing Machine

  • Aplicación
  • Descripción
  • Parámetro
  • Vídeo

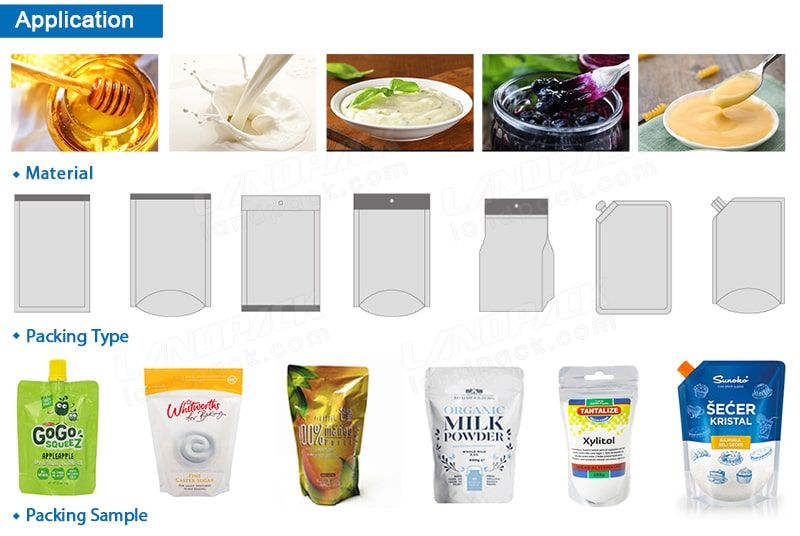

Application:

Suitable for All Kinds of Pre-Made Pouches, liquid packing , such as sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, paste, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Liquid/paste rotary filling machine for pre-made pouch. LD-8200L/LD-8250L

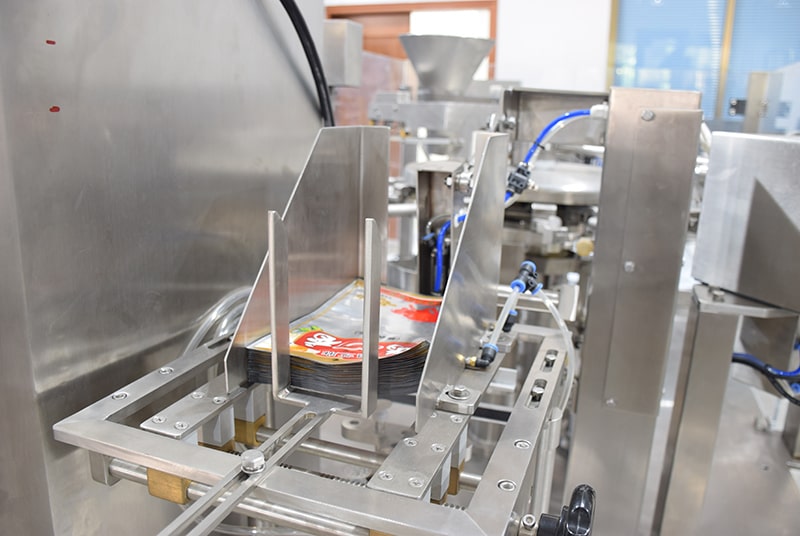

Wide range of pouches: All kinds of pre-made pouches such as flat and stand-up pouches (with/without zip)

Easy to operate: PLC and color panel, fault indication on the panel.

Easy to adjust: Only about 10 minutes to change different pouches.

Frequency control: Speed can be adjusted by frequency conversion within the range.

Water proof design: The machine surface can be washed down, so easy cleaning and longer useful life.

No pouch/incorrect pouch opening-no fill-no seal, machine alarm.

Machine alarm and stop when the inadequate air pressure.

Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.

Hygienic construction, the product contact parts are adopted sus304 stainless steel.

Imported engineering plastic bearings, no need to oil, no contamination.

Oil-free vacuum pump, avoid the pollution of the production environmental.

ModelLD-8200/LD-8250
Packing material3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
sizeW:70-200/100-250
Filling range10-1000g/20-2500g
Packing speed40-60bag/min(speed is determined by the product filling quantity)
Average precision≤ ±1%
Total power2.5KW
Dimensions1900mm X 1570mm X 1700mm(L*W*H)
Work flowgiving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
Main standard parts1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system
