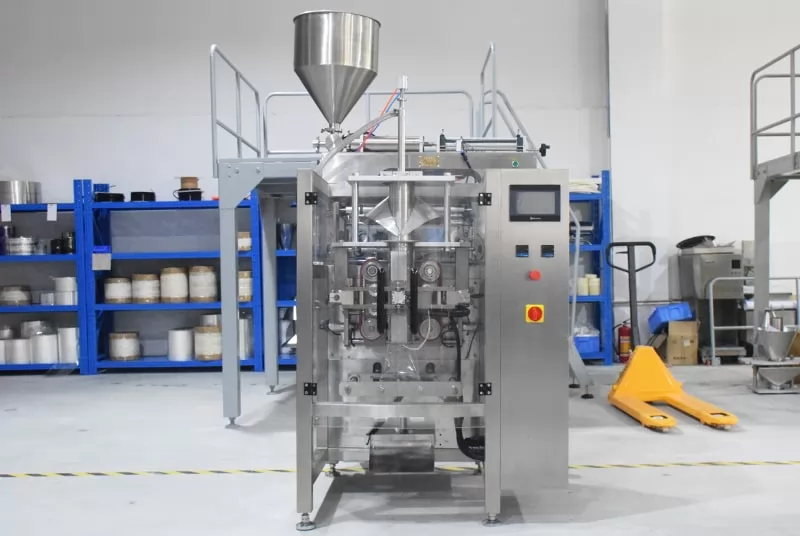

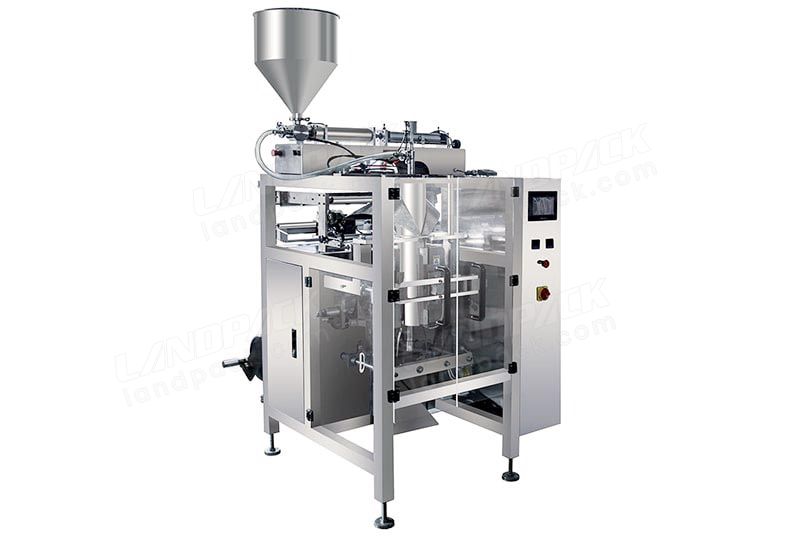

150-2000ml liquid pouch packaging machine LD-420L/ LD-520L

  • Aplicación
  • Descripción
  • Parámetro
  • Vídeo

Application:
VFFS Fully automatic liquid packaging machine is suitable for packing various kinds of liquid objects, such as oli, water, juice, milk, honey, soysauce, ketchup, tomato sauce, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    150-2000ml liquid pouch packaging machine LD-420L/ LD-520L

Products dosing, Filling, Laminate heat sealable pouch making and sealing.

Stainless steel 304 structure and surface.

Weighing and Packaging PLC & HMI Control Integrated, More stable operation, Easy for parameter setting.

Simple changing of pouch former, to adapt different pouch size requirement.

Intelligent temperature controlling configuration, ensure the artistic and neat sealing.

Configure with packaging film pre-pulling device, to enable stable pouch making.

No film no filling, and easy to change the packaging film.

ModelLD-420LLD-520L
Film WidthMax.420mmMax.520mm
Bag Length80-300mm80-350mm
Bag Width60-200mm100-250mm
Range of Measurement    150-1500ml2000ml
Film Roll DiameterMax.320mmMax.320mm
Packaging Rate10-60bag/min10-60bag/min
Power220V 50/60Hz 2KW220V 50/60Hz 3KW
Machine Size(L*W*H)1217*1015*1343mm1488*1080*1490mm
Machine QualityAbout 650kgAbout 680kg
Optional device1.Date Printing,2.Hole Punching Device,3.Air-filling Device,4.Tear Notch Device
