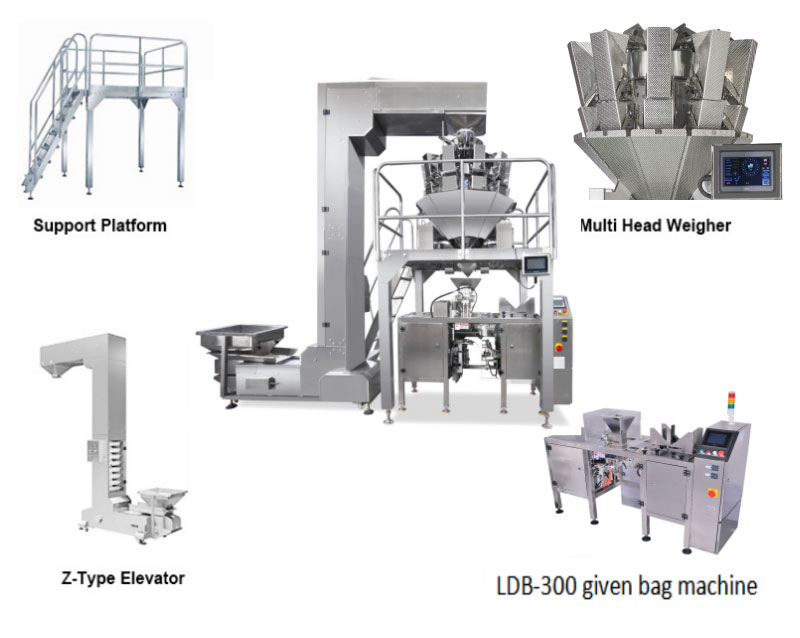

Hello everyone! This is Bella from LANDPACK, today I'd like to introduce our Mini Doypack Packing Machine, there are 5 parts for mini granule doypack machine as below.
A: Single station doypack machine features:
Doypack machine is suitable for all kinds of premade bags such as pillow bags. 3-side, 4-side, and 8-side quad seal bags (box pouch), kraft bags and spout bags, and so on, The Japan Panasonic PLC control, with Kinco touch screen interface system. easy operation. convenient operation, variable speed
1. Easy to operate adopt advanced PLC from Japan Panasonic
mate with a touch screen and electric control system, the man-machine interface is friendly.
2. Automatic checking: no pouch or pouch open error, no fill, no seal the bag can be used again, avoid wasting packing materials and raw materials.
3. Safty device: The machine stops at the abnormal air pressure and heater disconnection alarm.
4. The width of the bags could be adjusted by an electrical motor Press the control button could adjust the width of clips, easy operation and saving time.
5. It matches the glass safety door. The machine will stop
working when you open the door. So that it could protect the safety
of operators. At the same time, it could prevent dust.
6. The packing materials loss low, what this machine is used the preformed bag. the bag pattern is perfect and has a high-quality sealing part, which improved the product specification
7. With different feeders changed to pack solid, liquid, thick liquid powder, and so on
8. The packing bag suits in an extensive range, suit for multi-layer
compound, monolayer PE, PP, and so on Preformed bag made of film and paper
B: Multi heads weigher for weighing different weight products and support platform for supporting multi heads weigher features as below
| Model | SW-ML10 |
| Weighing Range | 10-1000 grams |
| Max. Speed | 25-35 bags/min |
| Accuracy | ±0.1-1.5 grams |
| Weigh Bucket | 1.6L |
| Control Penal | 10" Touch Screen |
| Power Supply | 220V/50HZ or 60HZ; 10A; 1000W |
| Driving System | Stepper Motor |
| Packing Dimension | 1950L*1280W*1691H mm(as reference) |
| Gross Weight | 640kg |
| Weighing Accuracy | ±5g |
C: Z-type elevator for feeding product
1. Sanitation with SS304 construction ;
2. Rigid design for vibrator and feed pan make feeding strictly correct ;
3. Quick release design for all the contact parts
4. Grand new modular control system.
5. Adopt stepless vibrating feeding system to make products flow more fluently.
6. Parameter can be freely adjusted according to the production
We all use very famous electric parts brand oversea, they’re of good quality, and the electric parts still enjoy 2 years warranty, as below
| Name | Brand/Origin | Qty | Model |
|---|
| PLC | Panasonic (Japan) | 1 | FPOR C32T |
| Touch screen | Kinco (China) | 1 | MT4434T |
| Cylinder | AIRTAC (Taiwan) | 1 | Multi models |
| Auto switch | AIRTAC (Taiwan) | 1 | Multi models |
| Magnet valve | AIRTAC (Taiwan) | 1 | Multi models |
| Air processor/switch | AIRTAC (Taiwan) | 1 | GFR300-8/HSV-08 |
| Modular control system for temperature | YUDIAN (China) | 1 | Brucepack |
| Switch mode power supply | Mean Well (Taiwan) | 1 | EDR-150-24 |
| Solid state relay | Omron (Japan) | 2 | G3NA-220B |
| Intermediate relay | Omron (Japan) | 7 | MY2N-JDC24BYOMZ |
| Circuit breaker | Schneider (France) | 3 | I-C65NC6A2P |
| Emergency stop button | Schneider (France) | 1 | BS54C/B2102C/BE101C |
| Action button (Start/Stop/Reset) | Schneider (France) | 3 | BW31C/BW33C/BE102C |
| Master switch | Eaton (USA) | 1 | P1-25/EA/SVB |
| Interlock (Safety switch) | CNTD (China) | 2 | CZ-39C |
Packaging & Delivery
Packaging Details
1. Stick safety stickers and fasten screws and clean, lubrication, Rust-proof;
2. Dismantle into packing parts;
3. Wrap in plastic film tight;
4. Fix in Plywood Cases
5. Forklift into Containers
Suitable for long-distance land and ocean transportation, we prefer you choose LCL for shipment, for safe loading & unloading to the destination. Packaging & Delivery
Remarks:
1. Trade term: FOB GZ.
2. Delivery time: 45-55 working days after the deposit is confirmed.
3. Payment term: T/T transfer 50% deposit after confirming in advance, 50% balance paid before delivery.
4. Packing: Export packing-Wooden cases.
5. Warranty: 12 months for the whole machine, and 24 months for the electric device.
6. HS CODE: 8422309090
7. Valid date: 30 days
If you're interested in our machine, just feel free to contact us
