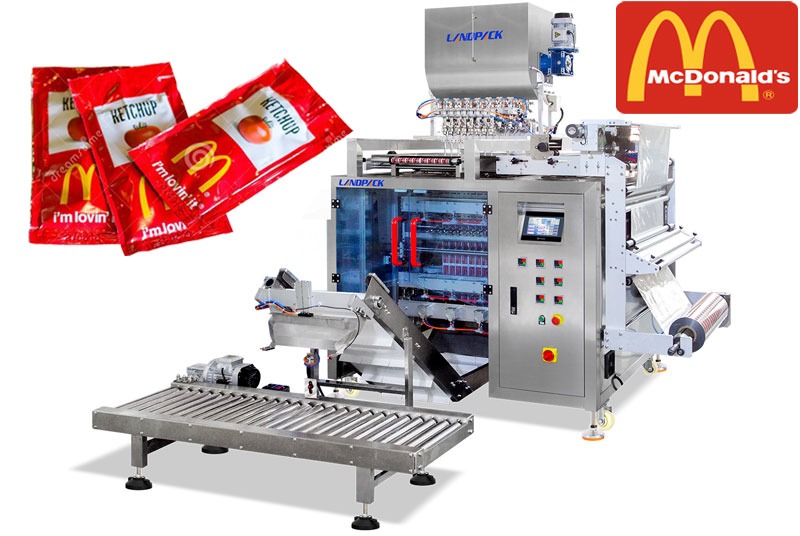

High Speed Ketchup/ Tomato Sauce Sachet MultiLane Packing Machine

  • Aplicación
  • Descripción
  • Parámetro
  • Vídeo

Application:

This high speed Mcdonald's ketchup/ tomato sauce sachet multi lane packing machine is suitable for all kinds of paste, viscous liquid packaging, such as ketchup, jam, chili sauce, honey, pizza sauce, peanut butter, tartar sauce, chocolate sauce, chili sause, cream, liquid butter, juice, shower gel, shampoo etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    High Speed Mcdonald'S Ketchup/ Tomato Sauce Sachet Multi Lane Packing Machine

1. Automatically complete all tasks such as measurement, bag making, filling, sealing, batch number printing, cutting and counting.

2. Automatic slitting film system, multi-line row and bag sealing at the same time.

3. Servo film running system, pneumatic control for horizontal sealing, accurate positioning, remarkable performance and beautiful packaging.

4. The dual light source photoelectric detection system is stable and reliable to ensure the integrity of the packaging bag.

5. Intelligent PLC control system, stable operation of the machine, convenient and fast operation,

6. A variety of automatic alarm protection functions can effectively reduce the loss of materials and ensure work safety.

7. Use touch screen to set parameters and support multiple languages.

Model

LD-480YLD-720YLD-960Y
Track Number4~6 Track4~10 Track4~12 Track
Filling Method1.Piston pump;   2.Peristaltic Pump
CapacityMax.40 cycle/min
Sachet SizeL:45--120mm; W:35-60mmL:45--120mm; W:35-90mmL:45--120mm; W:35-120mm
Film Width & ThicknessMax.480mm;0.07-0.1mmMax.720mm;0.07-0.1mmMax.960mm;0.07-0.1mm
Sealing Type3/4 sides sealing3/4 sides sealing3/4 sides sealing
Cutting Type1. Straight Cutting;    2. Zig Zag Cutting;    3. Continuous Cutting
Air & Power0.8 mpa  0.8m³/min; 2.8kw0.8 mpa  0.8m³/min; 4.1kw0.8 mpa  0.8m³/min; 5.5kw
DIM & WT950*1470*1750mm; 300kg1153*1654*1750mm; 400kg1415*1686*2130mm; 500kg
