Application:
Liquid/paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste,etc.
Packaging samples:

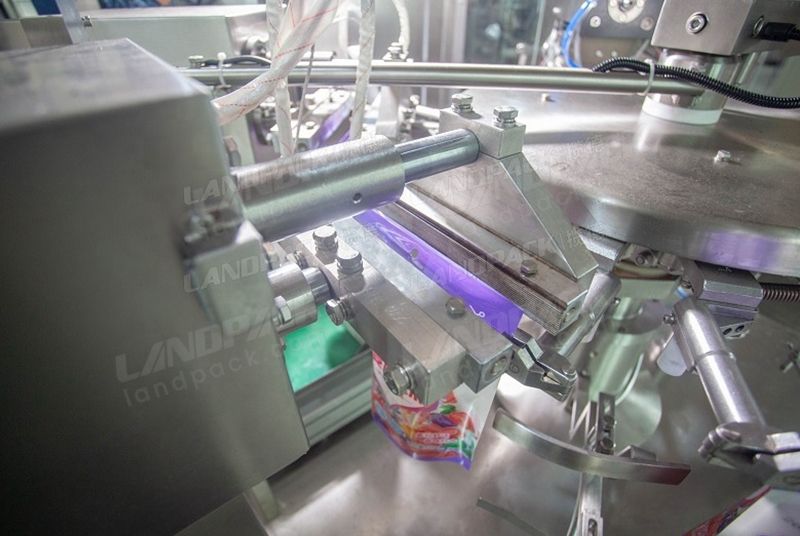

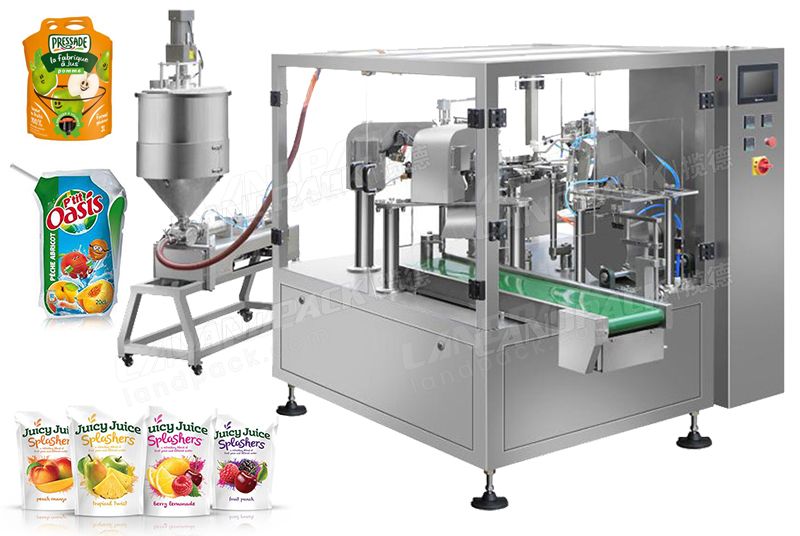

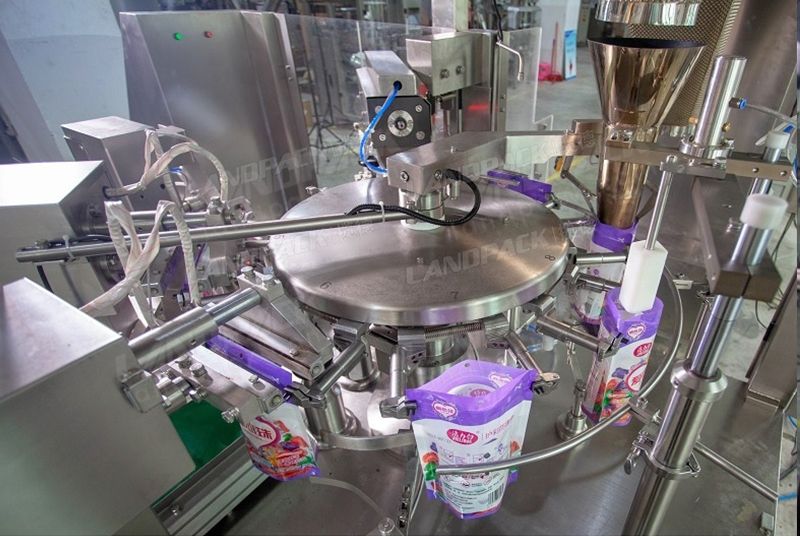

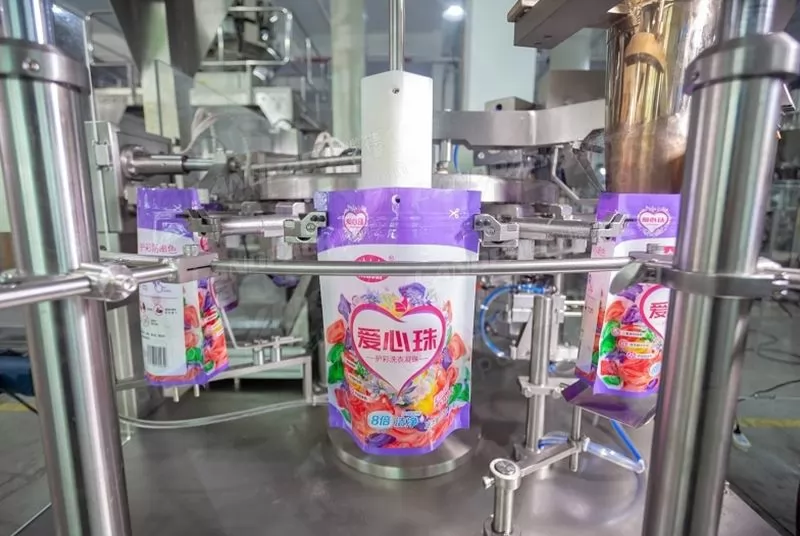

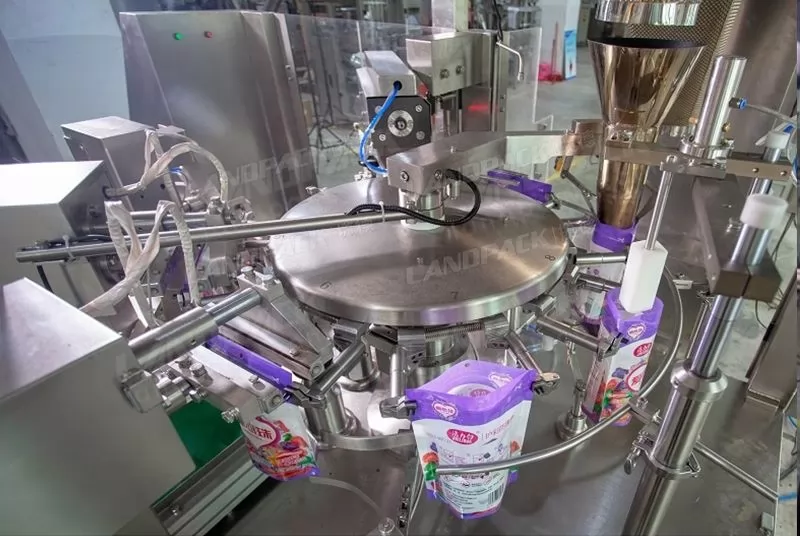

1. Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
2. The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch..
3. Automatic checking system can check bag situation, filling and sealing situation.
4.The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing..
5. The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.
Model | LD-GD7749 |
Bag Size | Width:80-210/200-300mm, Length:100-300/100-350mm |
Filling Volume | 5-2500g (Depending on type of products) |
Capacity | 30-80bags/min (The speed depends on type of products and packaging material used) 25-50bags/min (For zipper bag) |
Package Accuracy | Error≤±1% |
Total Power | 2.5KW (220V/380V,3PH,50HZ) |
Demension | 1750*1550*1650 (L*W*H) |
Weight | 1480KGS |
Compress Air Requirement | ≥0.8m³/min supply by user |
