Application:
Suitable for packing various kinds of liquid objects, such as honey, chili sauce, tomato sauce, peanut butter, jam, bean sauce, detergent, fruit juice, miller wine, soy sauce, vinegar, drinks, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

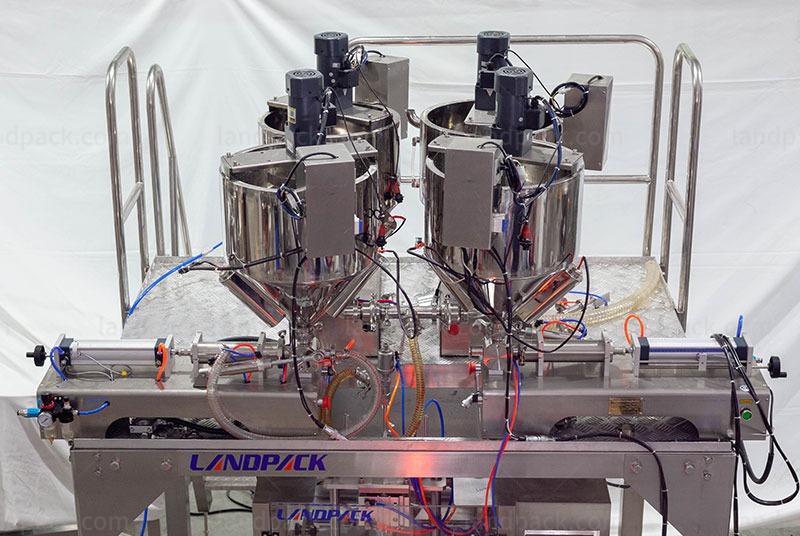

Products dosing, Filling, Laminate heat sealable pouch making and sealing.
Stainless steel 304 structure and surface.

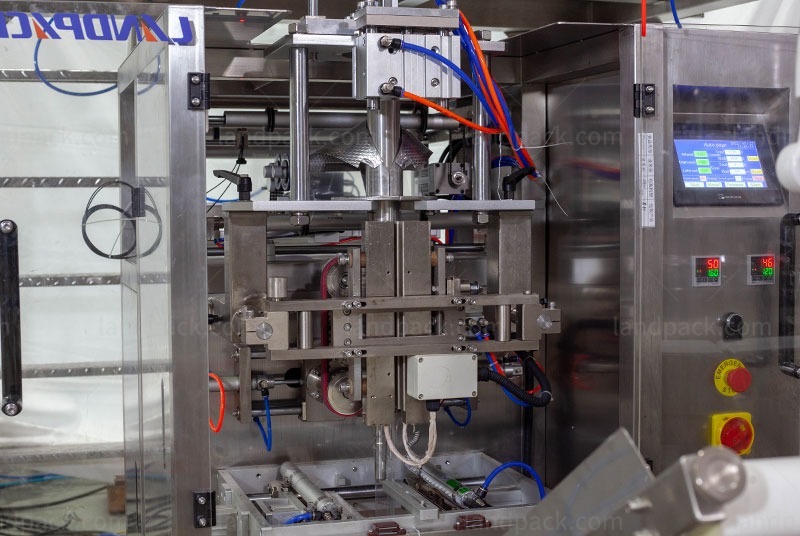

Weighing and Packaging PLC & HMI Control Integrated, More stable operation, Easy for parameter setting.
Simple changing of pouch former, to adapt different pouch size requirements.

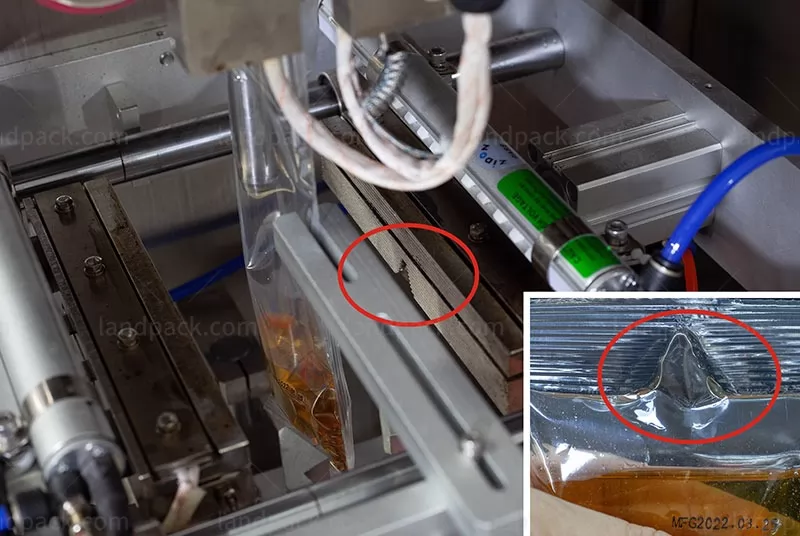

Intelligent temperature-controlling configuration, ensure artistic and neat sealing.
Configure with packaging film pre-pulling device, to enable stable pouch-making.
No film no filling, and easy to change the packaging film.
Model | LD-420L | LD-520L |
Film Width | Max.420mm | Max.520mm |
Bag Length | 80-300mm | 80-350mm |
Bag Width | 60-200mm | 100-250mm |
Range of Measurement | 150-1500ml | 2000ml |
Film Roll Diameter | Max.320mm | Max.320mm |
Packaging Rate | 10-60bag/min | 10-60bag/min |
Power | 220V 50/60Hz 2KW | 220V 50/60Hz 3KW |
Machine Size(L*W*H) | 1217*1015*1343mm | 1488*1080*1490mm |
Machine Quality | About 650kg | About 680kg |
Optional device | 1.Date Printing,2.Hole Punching Device,3.Air-filling Device,4.Tear Notch Device |
