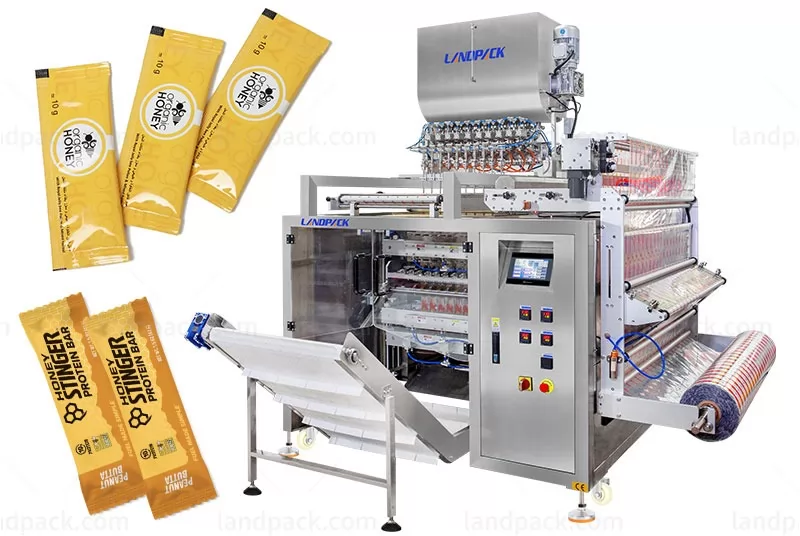

Application:
This machine is mainly used for packing liquid paste and different drinks, medical, and chemical products: such as honey, oil, sauce, puree, juice, cream, gel, milk, yogurt, beer, alcohol, laundry liquid, etc.
Packaging type:
According to customer needs, the bag types can be changed: back side seal, three sides seal, four side seal, special bag seal as per requested.
Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Bag/sachet/stick material
3. Bag/sachet/stick dimension
Packaging Exambers:

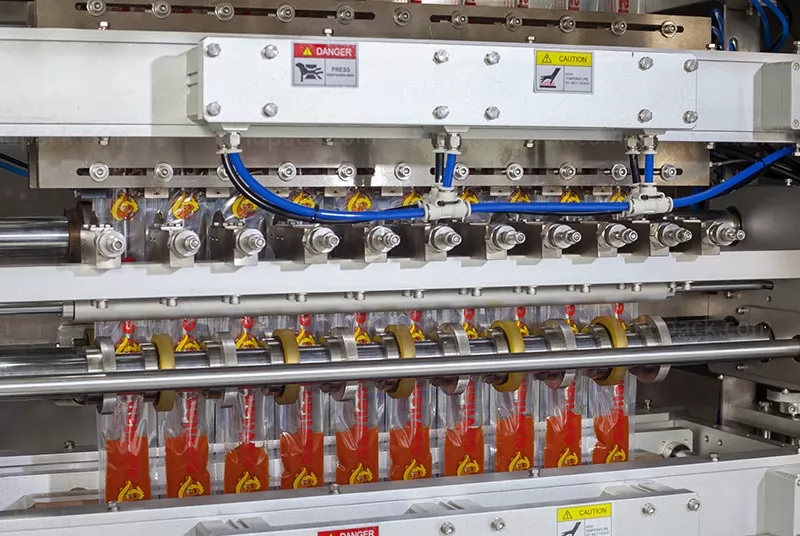

1. PLC controller, high function and control the whole machine’s work steps.
2. The appearance of the machine conforms to the European and American markets, and the body is stable (the whole machine).
3. High production efficiency, the speed of 10 rows can reach 200-300 packs per minute, which improves the production capacity and saves manpower.
4. With a stirring device, it is suitable for sticky materials, such as chili sauce, chocolate sauce, mayonnaise, etc.
5. Ultraviolet disinfection, in line with food hygiene, ensures safe production.

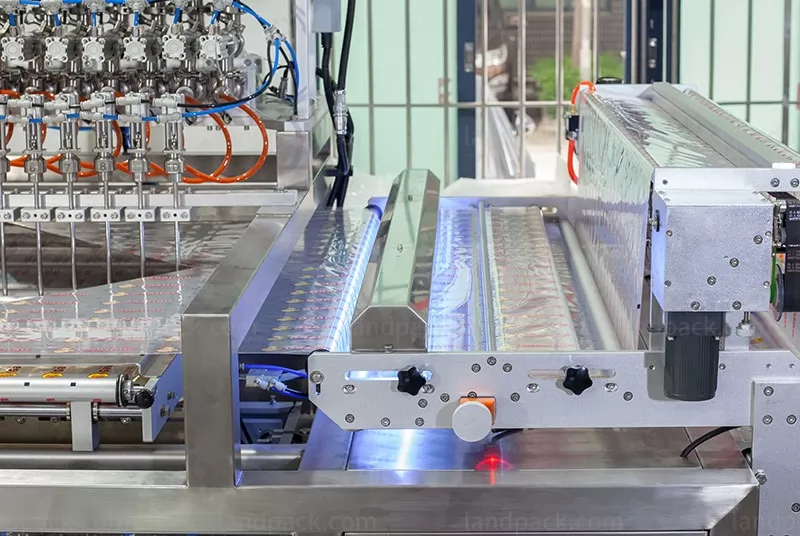

6. Servo control, and precise cutting, to ensure perfect packaging effect.
7. The high degree of automation, filling, feeding, printing batch number, cutting and tearing, finished bag output once, quick and convenient adjustment.

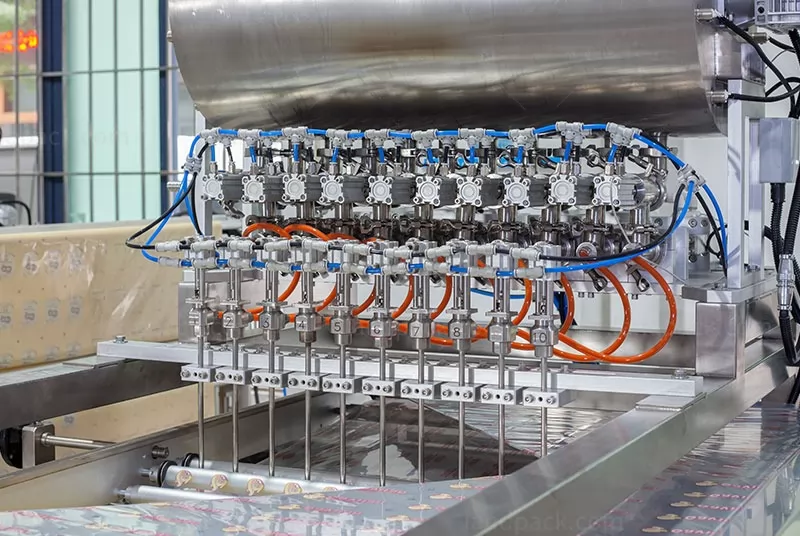

8. Piston filling, high filling precision, good sealing effect, clean sealing.
Model | LD-480Y | LD720Y | LD-960Y |
Track Number | 4-6 Track | 4-10 Track | 4-12 Track |
Filling Method | 1. Piston pump; 2. Peristaltic Pump | ||
Capacity | Max.40 cycles/min | ||
Sachet Size | L: 45-120 mm; W: 35-60 mm | L: 45-120 mm; W: 35-90 mm | L: 45-120mm; W: 35-120 mm |
Film Width & Thickness | Max.480mm; 0.07-0.1mm | Max.720mm; 0.07-0.1mm | Max.960mm; 0.07-0.1mm |
Sealing Type | 3/4 sides sealing | ||
Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
Air & Power | 0.8 mpa, 0.8m³/min; 2.8kw | 0.8 mpa, 0.8m³/min; 4.1kw | 0.8 mpa, 0.8m³/min; 5.5kw |
Dimensions | 950*1470*1750mm | 1153*1654*1750mm | 1415*1686*2130mm |
Total Weight | 300kg | 400kg | 500kg |
