Application:

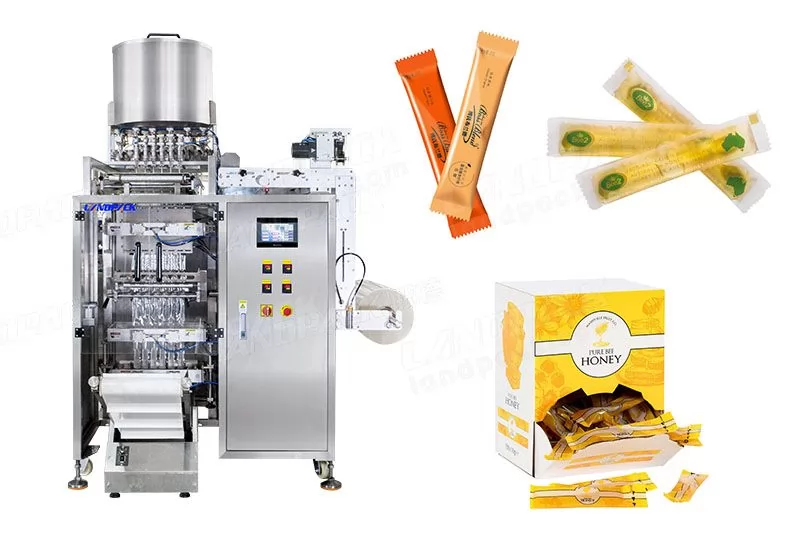

It suitable for packaging liquid liquid paste in food, chemical, daily chemical and other industries. Such as: shampoo, edible oil, cream, cream, juice, jam, butter, etc.
Packaging type:
According to customer needs,the bag types can be changed:Back Side Seal, ,Three Sides Seal ,Four Side Seal .Specical bag Seal as per requested
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:

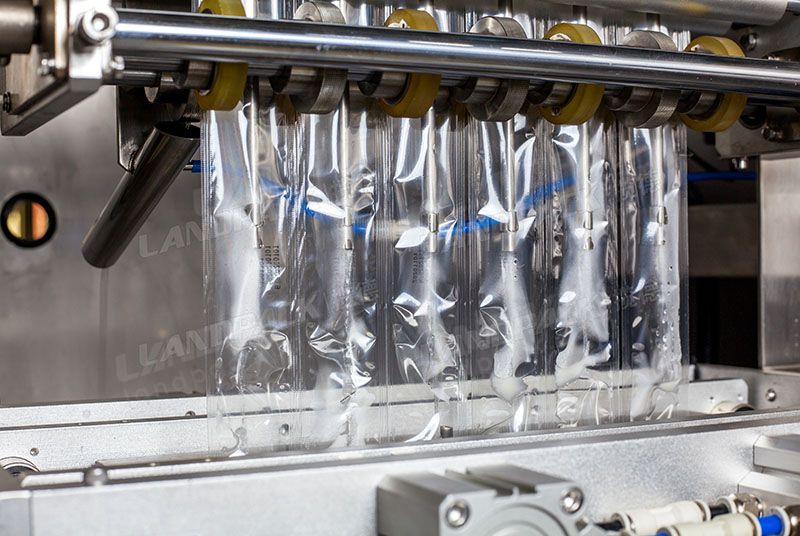

1. Multi lanes machine can produce multi lanes bags at same time.

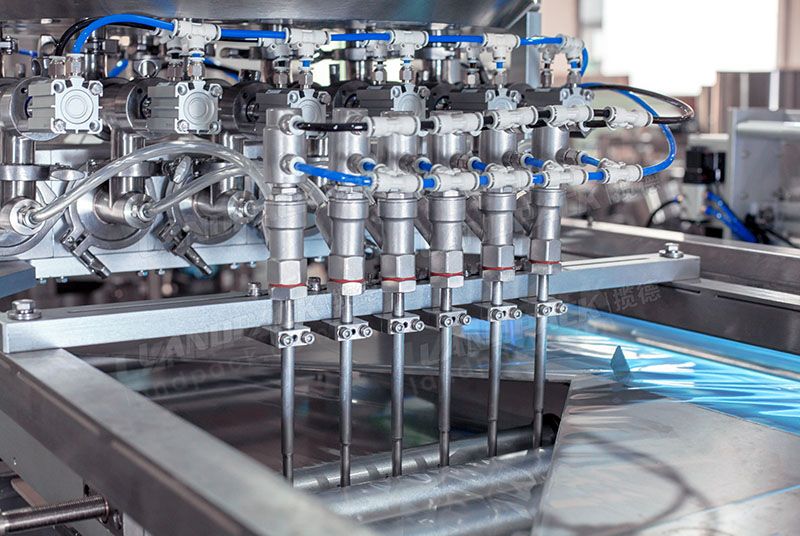

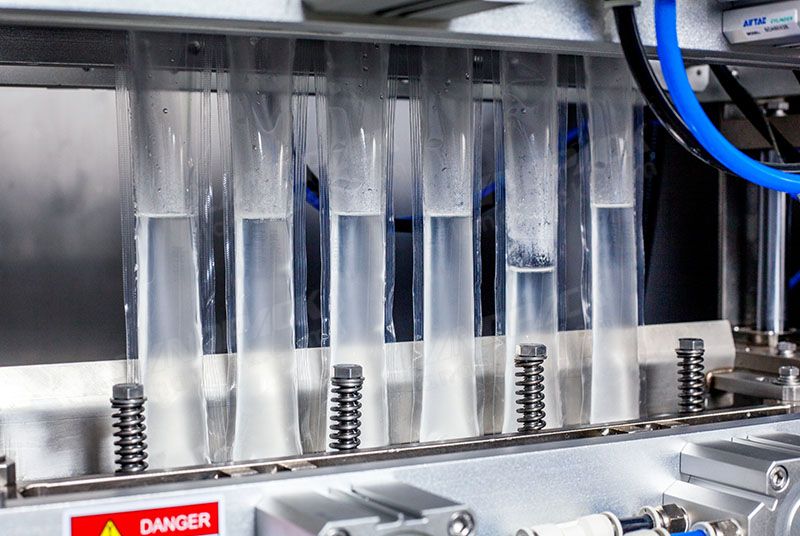

2. Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
4. Stainless steel contact part and the machine outer shell, high feature for liquid running environment.

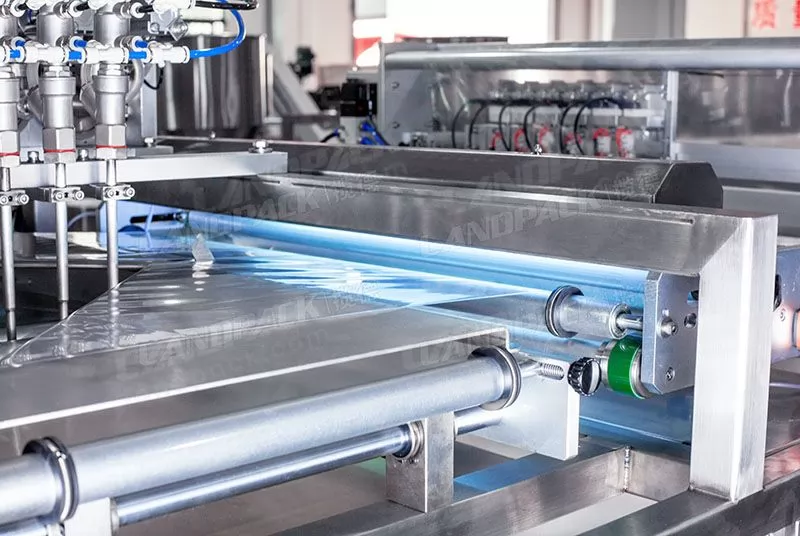

5. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.
6. PLC controller, high function and control the whole machine’s work steps.
Model | LD480Y | LD-720Y |
Number of columns | 4-6 | 4-10 |
Measurement method | Liquid metering pump | Liquid metering pump |
Packaging speed | Single row 40 packs/min | Single row 40 packs/min |
Bag size | L40-120MM W35-60MM | L40-120MM W35-90MM |
Maximum film width | 280mm | 560mm |
Sealing form | Back seal | Back seal |
Power type | 1N+PE/50HZ/AC220V/3.5KW | 1N+PE/50HZ/AC220V/5KW |
Air consumption | 0.8MPA0.8m3/min | 0.8MPA0.8m3/min |
Dimensions | 1470*950*1750mm | 1153*1654*1750mm |
Total Weight | 550kg | 650kg |
