Application:
It is widely used in Food and cosmetic and agriculture industry for water, waterlike liquid, cream, oil and ointment filling. Filling liquid: water, honey,shampoo,beverage, sauce, cream, paste, oil, etc.
Packaging Material:
Glass, Metal, Paper, Plastic, Wood, Other
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:

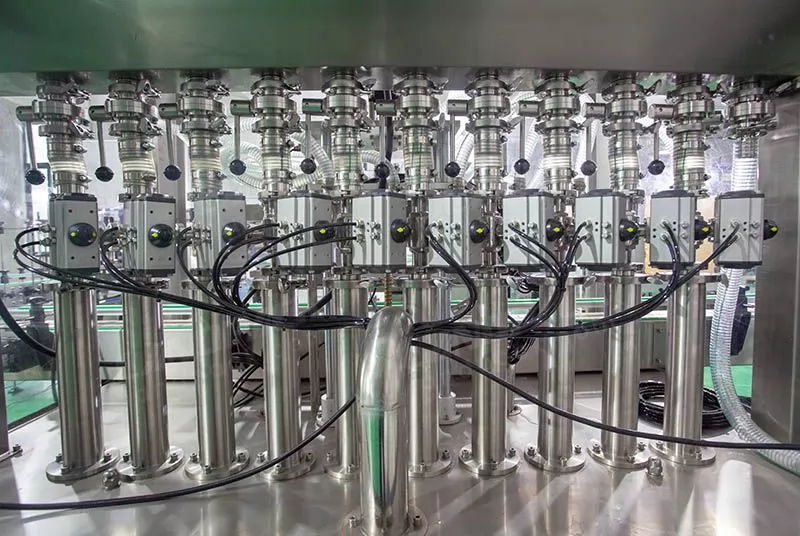

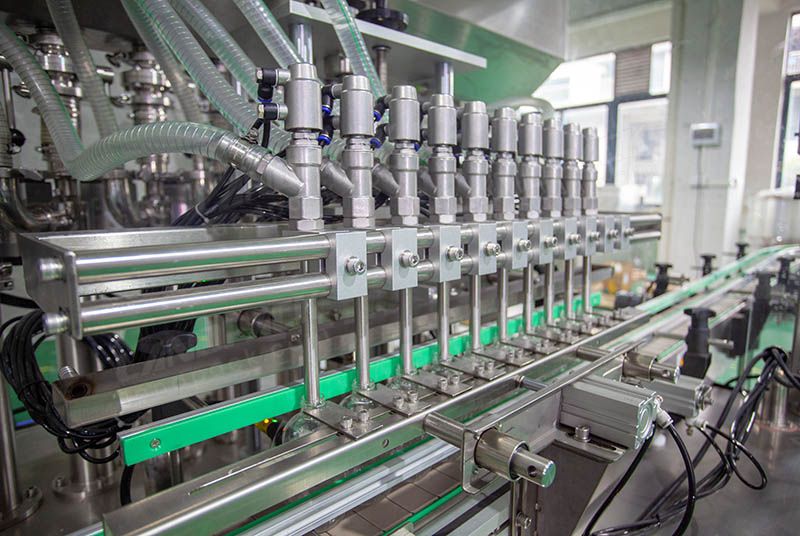

1.Pneumatic Filling System: Simple and easy clean
2.All Material contact parts are stainless steel 304. SS316L is optional.
3.Touch Screen with PLC System
4.Wide Filling range:50-5000ml
5.Low cost with high production capacity.
Model Name | LFZ-06 | LFZ-08 | LFZ-10 |
Filling Nozzle | 6 | 8 | 10 |
Production Speed | 20-35Bpm | 30-40Bpm | 40-50Bpm |
Filling Accuracy | 200ml: +/-1%, 200-5000ml: +/-0.5% | ||
Filling Range | 50-5000ml | ||
Power Supply (without heating) | 1Kw | 2kw | 2.5kw |
Power Supply | 220V/380v 50hz Three phase | ||
Air Pressure | 0.6-0.8Mpa | ||
Applicable Bottle Shape | Round, Flat, Oval, Irregular, Square, Jar, Can, etc. | ||
Bottle Material | HDPE, Aluminum, Plastic, Glass, etc. | ||
Dimension (mm) | 4000*1320*2090 | 4000*1320*2090 | 4000*1320*2090 |
Weight | 650kg | 800kg | 800kg |
