Application:
Suitable for packaging of various sticky products and frozen products, such as chicken nuggets, meat, quick-frozen dumplings, frozen food, various seafood, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
It completes bagging, filling, sealing, date printing, punching, counting automatically, saving labor and time.
Computer control and English-Chinese touch screen for easy operation without stopping the unit.
Intelligent PID temperature controller for easy adjustment and good application to various laminated film and paper.
Packaging diversification, such as back-seal bag, side gusseted bag, linked bag, hole punched bag etc.
Full automation from bag making, measuring, filling, sealing, counting and date printing.

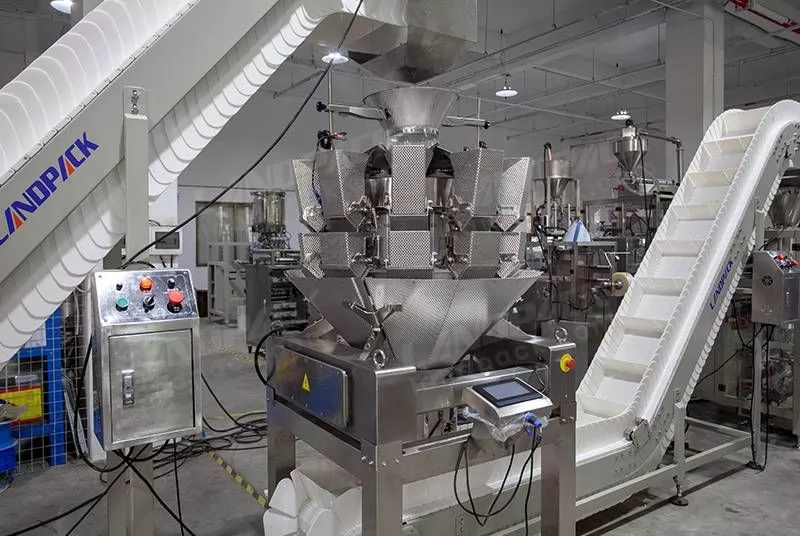

Multi-heads scale filling system for filling accuracy and good application to various kinds of products.

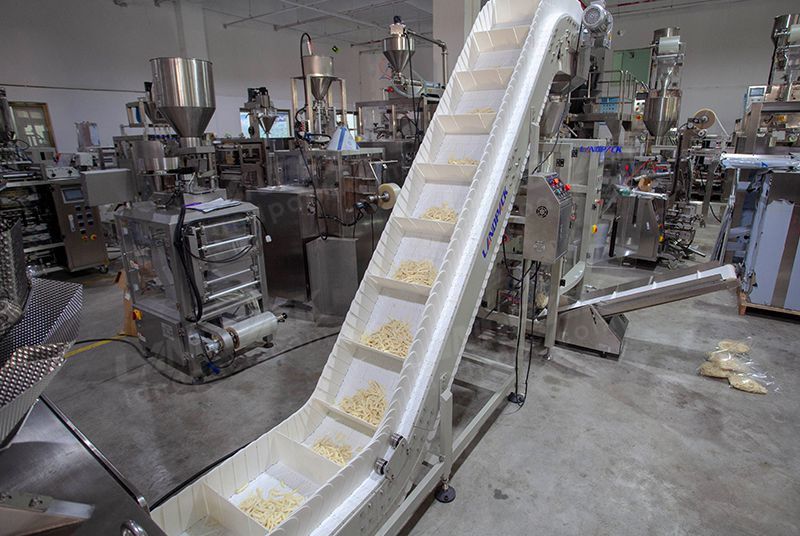

The secondary feeding system perfectly solves the problem of insufficient height of the customer's plant
Model | LD-420 | LD-520 | LD-720 |
Film Width | Max.420mm | Max.520mm | Max.720mm |
Bag Length | 80-300mm | 80-350mm | 100-500mm |
Bag Width | 60-200mm | 100-250mm | 180-350mm |
Roll Diameter | Max.320mm | Max.320mm | Max.320mm |
Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Packing Speed | 5-60bag/min | 5-60bag/min | 5-55bag/min |
Power | 220V 50/60Hz 2KW | 220V 50/60Hz 3KW | 220V 50/60Hz 3KW |
Machine Size | (L)1217*(W)1015*(H)1343mm | (L)1488*(W)1080*(H)1490mm | (L)1780*(W)1350*(H)2050mm |
Machine Weight | About 650kg | About 680kg | About 750kg |
Option Device | Two synchronous belt device, air filling device, angle fold device,automatic rectifying device, hole-punching device, link bag device. |
