Application:

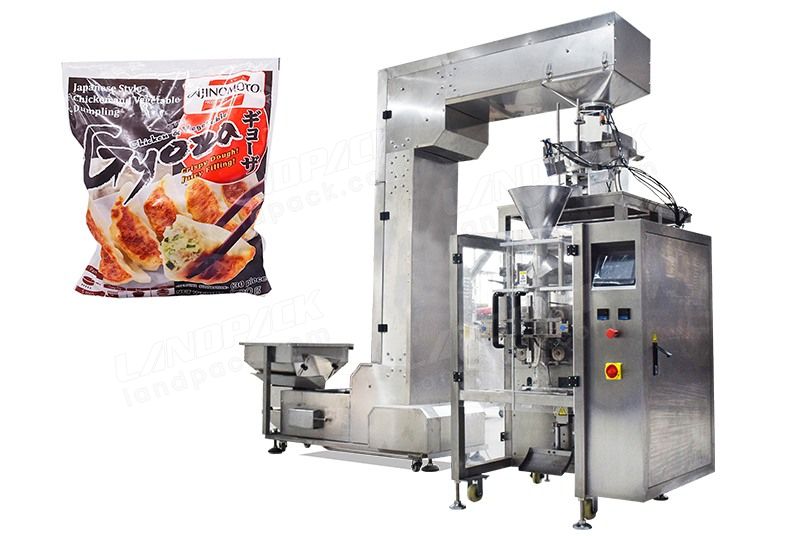

Suitable for frozen dumplings, Ball, hot pot, frozen food, dumplings, Bigen fruit, nuts, and other granular products counting packaging machine.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
The machine adopts high precision servo film transport system, PLC Program Control,developed touchable Human-machine Interface of Advanced Automatic Positioning,Photoelectric Tracking,Digital Temperature Control,etc.
Operation is more Simple,perfect.It is the first choice of food packaging industry to Improve the production efficiency, reduce Labor Intensity, improve the grade of packaging equipment.
Transverse and longitudinal sealing Temperature Control independently,suitable for PE/polyethylene,PE/aluminum plating, pet/PE, pp,and other heat-ealing packaging materials, etc.
It completes the whole procedure of filling,measuring,bagging,date printing,charging(exhausting),product out-putting automatically.
High precision, high efficiency without crash the materials.
Packaging style diversified,back sealing,gusset bag,continuous bags,punching,etc.
Work environment quiet, low noise, saving energy.
A complete set of equipment is economical.
Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 |
Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min | 5-20bag/min | 5-20bag/min |
Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
