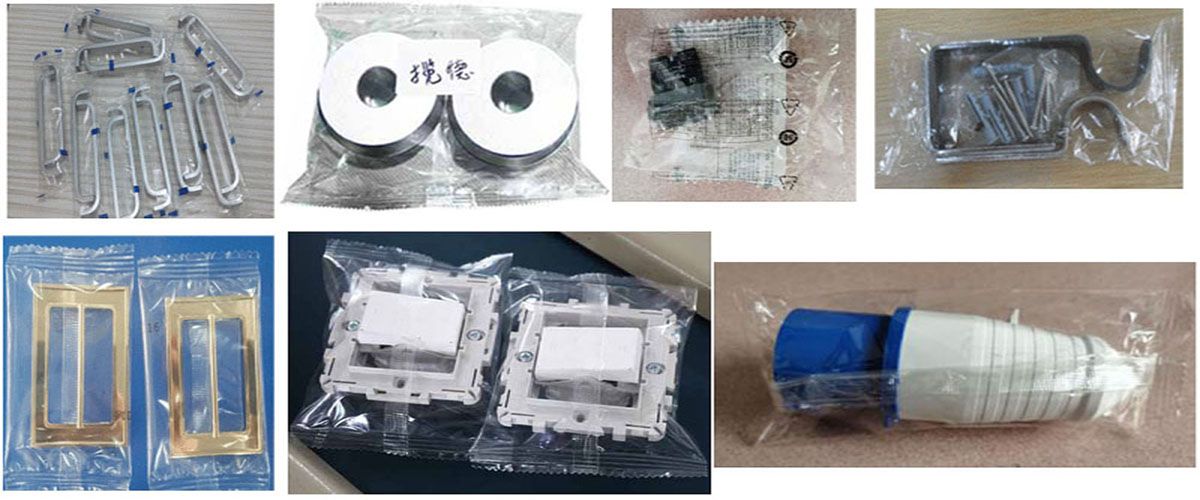

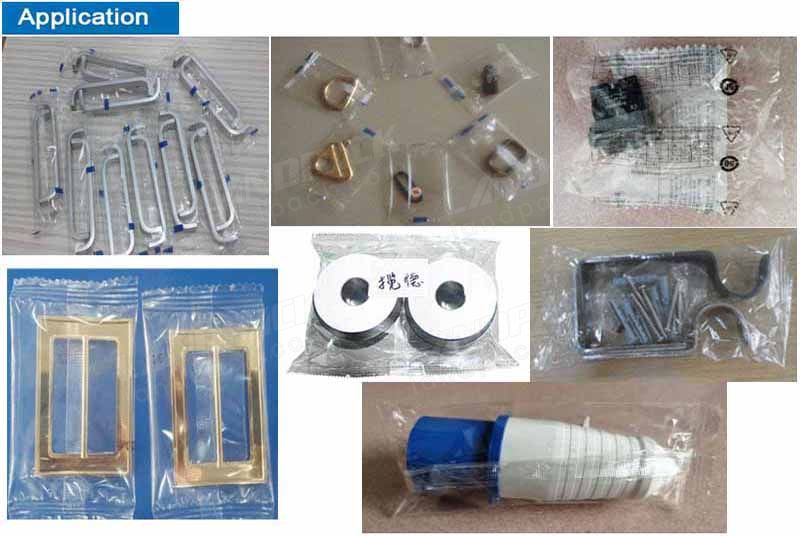

Application:
Suitable for pack various kinds of regular objects into pillow bag or gusseted bag. the object like metal parts, industrial parts, hardware accessories, toys and other conventional items.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Dual frequency conversion control, bag length can be setted and cutting in one step,saving time and films.
Interface features are easy and quick setting and operating.
Self diagnosis failure function, clear failure display.
High sensitivity photoelectric eye color tracing,numerical input of cutting sealing position for extra accuracy.
Temperature independent PID control, more suitable for packing different materials.
Positioned stop function,without sticking knife or wasting film.
Simple driving system,reliable working,convenient maintenance.
All control is realized through software,easy for function adjusting and technical urgrade.
Model | LP-250X | LP-350X | LP-450X | LP-600X | LP-700X |
Film Width | Max.250mm | Max.350mm | Max.450mm | Max.600mm | Max.700mm |
Bag Length | 65-280mm | 65-330mm | 150-450mm | 160-500mm | 180-600mm |
Bag Width | 30-110mm | 50-160mm | 50-180mm | 100-280mm | 100-330mm |
Product Height | Max.45mm | Max.65mm | Max.80mm | Max.110mm | Max.110mm |
Packing Speed | 40-230bag/min | 40-230bag/min | 40-150bag/min | 20-150bag/min | 20-130bag/min |
Power | 220V 50/60Hz2.4KW | 220V 50/60Hz2.8KW | 220v 50/60Hz2.8KW | 220v 50/60Hz2.8KW | 220V 50/60Hz2.8KW |
Machine Size(L*W*H)mm | 3920*670*1320 | 4020*720*1320 | 4150*820*1450 | 4300*920*1460 | 4380*980*1480 |
Machine Weight | About 500kg | About 550kg | About 650kg | About 680kg | About 720kg |
