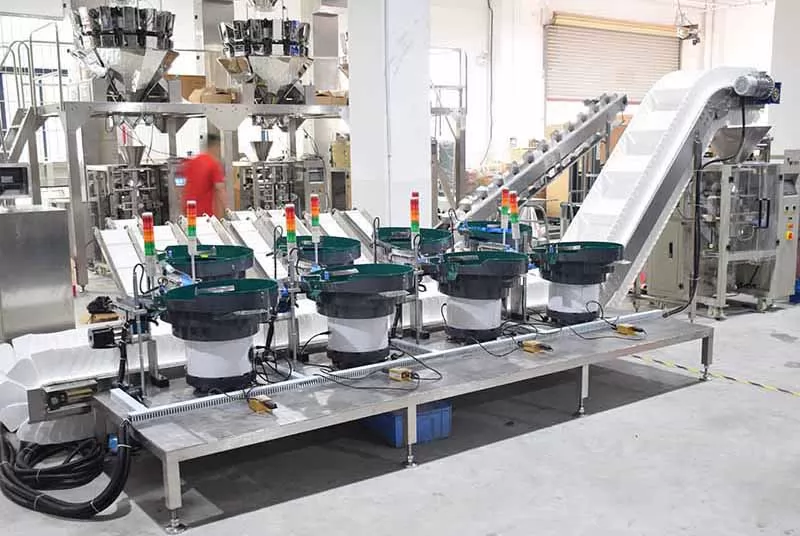

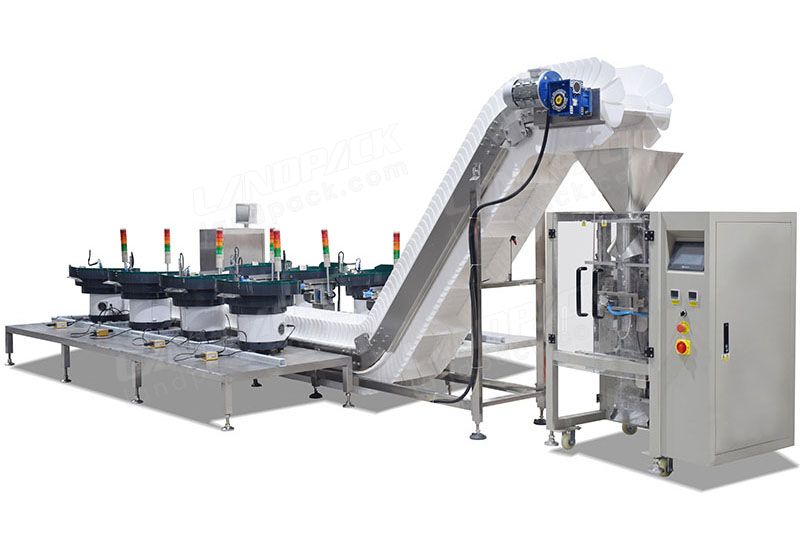

Automatic Fastener/ Hardware Counting Packing Machine With Vibration Disk

  • Aplicación
  • Descripción
  • Parámetro
  • Vídeo

Application:

Application: Can be widely used in electrical appliances, lighting, metal decorative products subsidiary installation screws, nuts, small pieces of plastic mixed packaging.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Fastener/ Hardware Counting Packing Machine With Vibration Disk

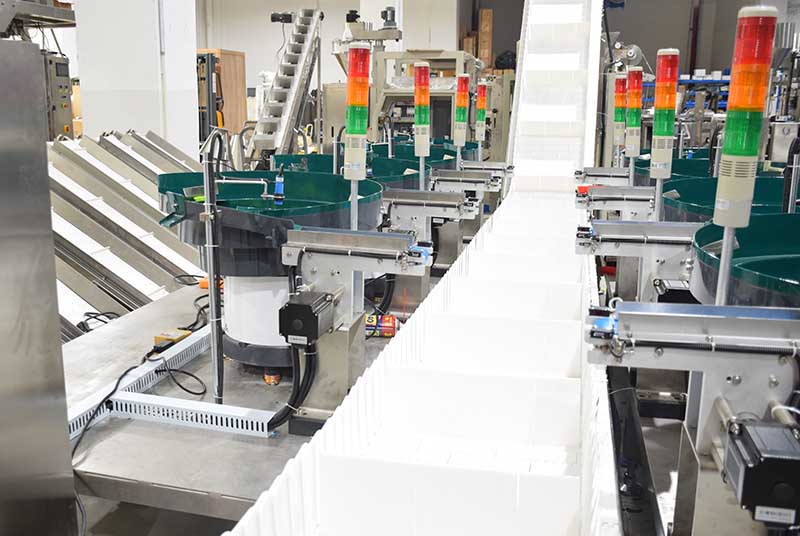

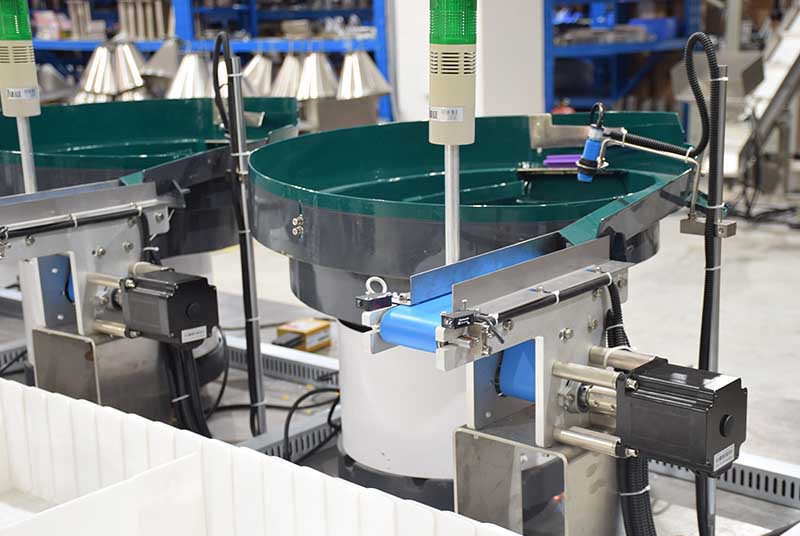

1. Tailored to the screw samples of the vibration plate, linear vibration arrangement, and sophisticated counting control device to ensure that each bag is accurate.

2. Packaging icon packaging materials, the machine advanced step control, with the use of color tracker can get the perfect icon design.

3. SCM control system, fault self-stop, self-alarm, self-diagnosis, safe and easy to use.

4. Automatic display of the number of packages, the statistics can easily work out the machine.

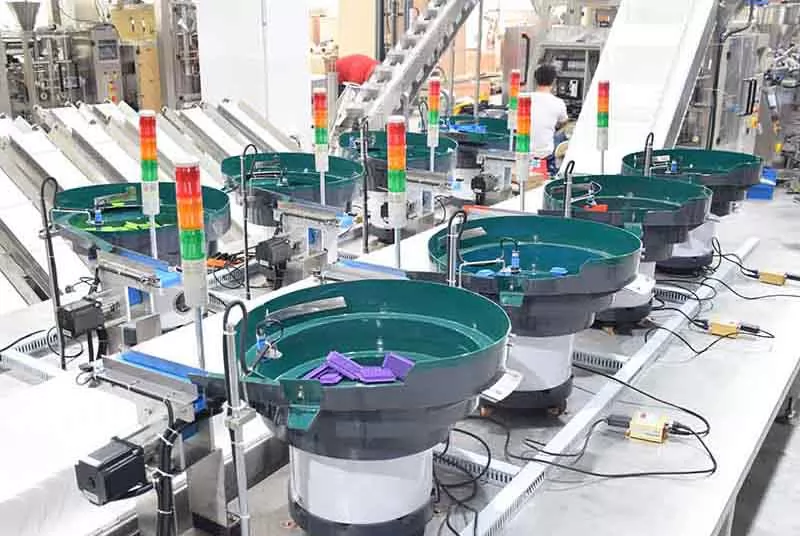

5. Single vibration disk measurement of a single screw, if you need to pack a variety of specifications at the same time the need for multiple vibration disk supporting the use of.

Parameters
Type:LD-420AH-8Packing speed:30-60bags/min
Measuring range:0-100000 pcsBag length:L:40-160mm
Bag Width:30-110mmMax film width:220mm
Sealing type:3 sides, 4 sides or back sealingPacking filmAll heating material (paper/PE,PET/AC/PE,etc)
Power:2500WNet weight:800KG
Voltage:220V 380V/50HZ 60HZOverall size:L1000*W700*H1600mm
Economic Benefit
Case 1: Economic Benefits Brought By The Screw Packaging System
Take the "landpack" screw packaging system used by a certain manufacturer as an example. The factory originally used manual weighing and packaging, but after it was put into the screw packaging system, there were the following obvious changes.
Comparison ItemArtificial Weighing + PackingAfter Using The Packaging System
Average Weight Deviation Of A Single Bag≤5g≤2g (Saved 3 grams)
Need Labor10 people3 people(Saved 7 Labor)
Hygiene Situation⭐⭐⭐⭐⭐⭐⭐
Energy Consumption⭐⭐⭐⭐⭐
Product Waste⭐⭐⭐⭐⭐⭐⭐
Production ManagementNot easy to manageDigital management
Production LayoutLabor-intensive and complex production environment.Mechanical automation, simple and beautiful production environment.
