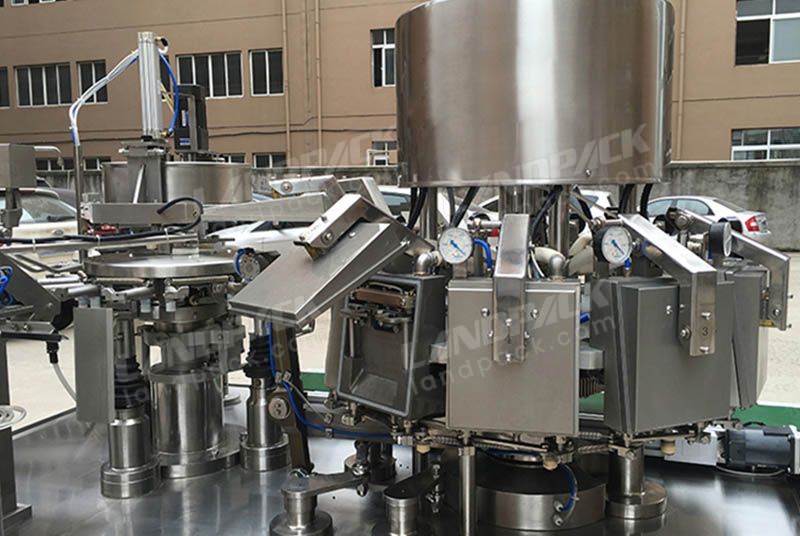

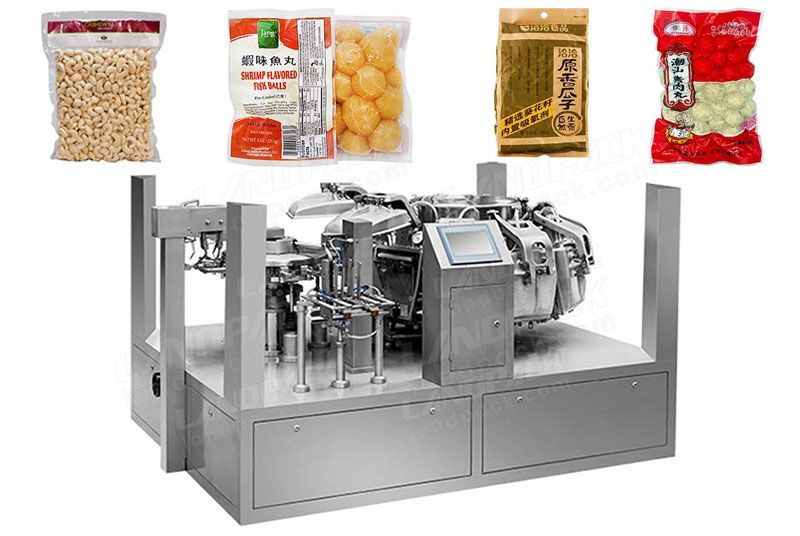

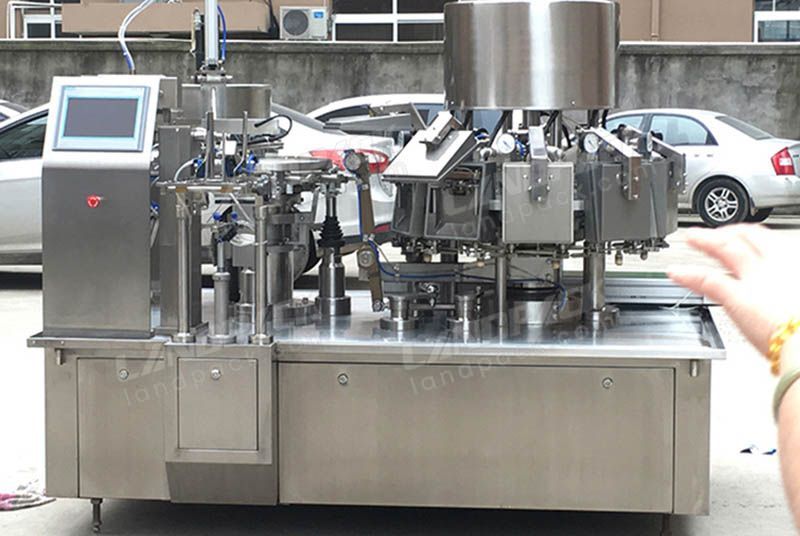

Automatic Vacuum Packing Machine For Dry Fruit LDZK-200

Parameters:

 Model：LDZK-200

 Packaging materials: aluminum foil bag, four side sealed bag, paper bag and other composite bags etc.

 Bags Size: Bag Size: W: 120-200 mm, L: 150-300 mm

 Filling Volume:20-1000g (Depends on product type)

 Capacity: 10-40 bags/min

 Dimension: 2600*1900*1700 mm (L*W*H)

 Weight: 3000KG

 compress air requirement: ≥0.8m³/min supply by user

Optional configuration:

1. material weighing Milling machines

2. platform

3. check weigher

4. material elevator

5. finished product conveyor

6. metal detecto

7. Inkjet printer

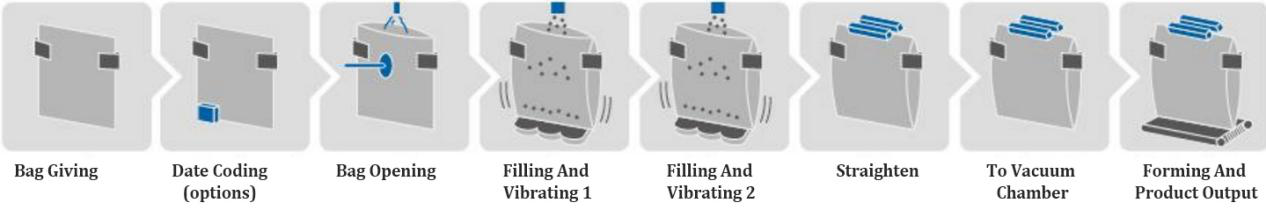

Work Process:

1. Bag giving

2. Date coding(options)

3. Bag opening

4. Filling and vibrating 1

5. Filling and vibrating 2

6. Straighten

7. To vacuum chamber

8. Forming and product output
