Application:

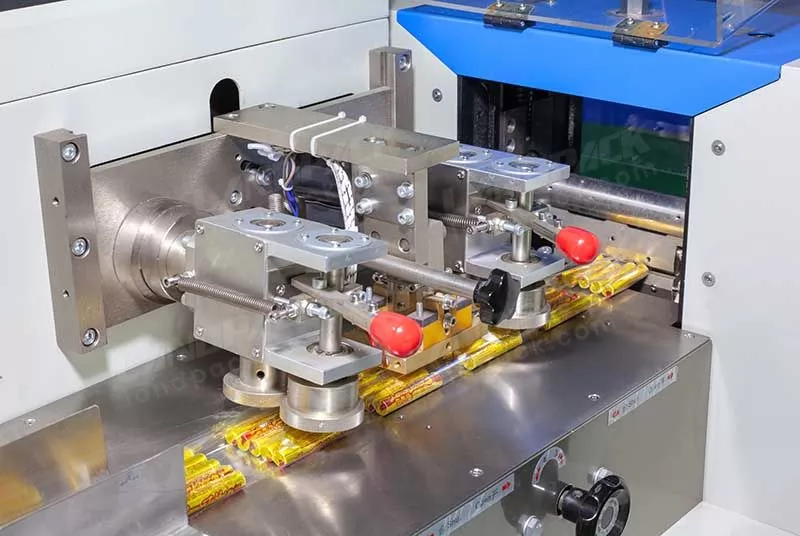

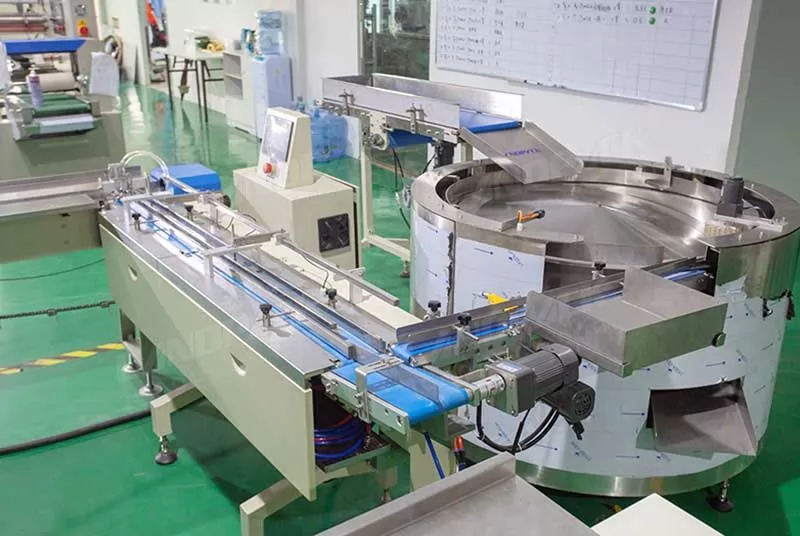

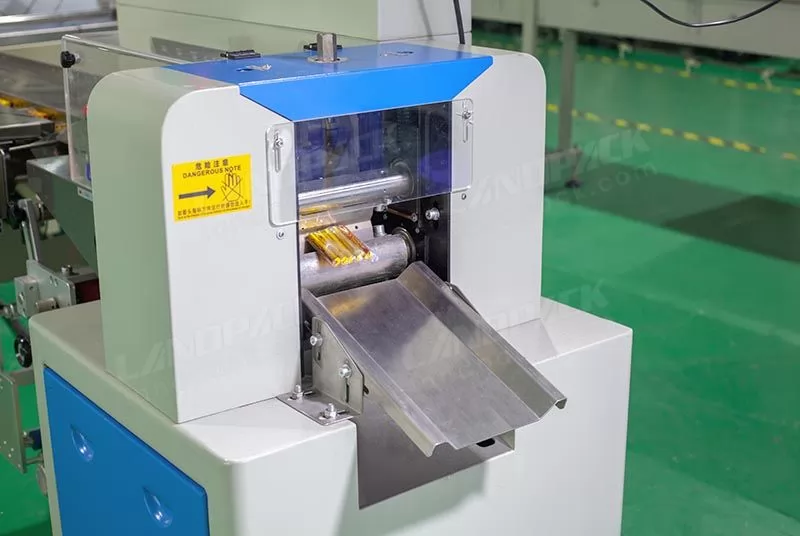

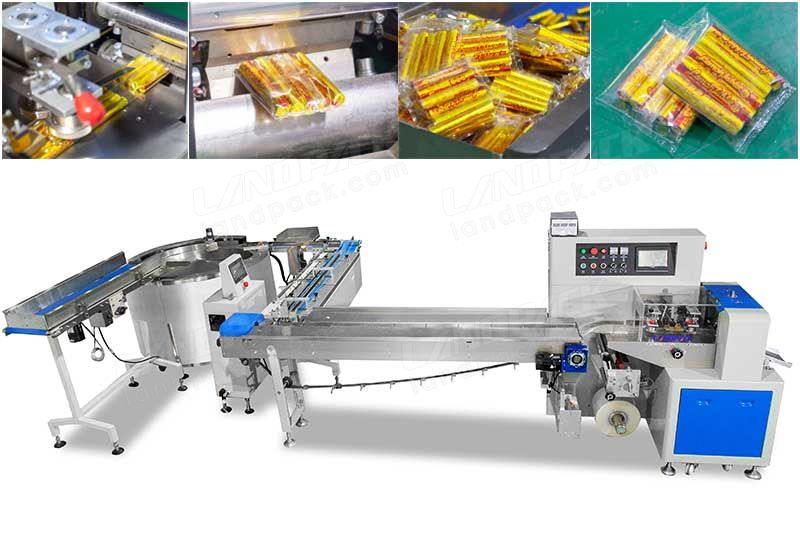

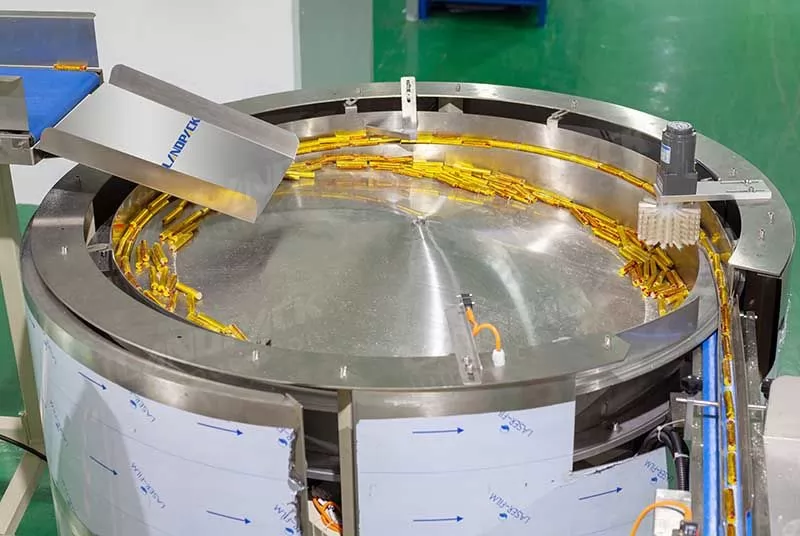

Automatic Lemon Cake Horizontal Flow Wrap Machine, Suitable for packing all kinds of strips, rods and other bulk conventional shapes into one bag. Such as lemon cakes, waffles, Swiss rolls, moon cakes, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. The food contact surface is made of SUS304 stainless steel;
2. All bearings are imported from the country (Harbin and NSK);
3. Imported food-grade anti-bacterial PU tape
4. All other plates and shafts are immersed in nickel and aluminum profiles are oxidized and sandblasted;
5. All stainless steel parts are laser cut, drawn and deburred.
6. The brackets and shields are painted with carbon steel.
Model | LP-250 | LP-320B | LP-320D |
Film Width | Max.250mm | Max.320mm | Max.320mm |
Bag Length | 65-190 or 120-280mm | 65-190 or 120-280mm | 90-220 or 150-330 mm |
Bag Width | 30-110mm | 50-160mm | 50-160mm |
Product Height | Max.40mm | Max.40mm | Max.55mm |
Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm |
Packaging Speed | 40-230bag/min | 40-230bag/min | 40-230bag/min |
Machine Size | 220V, 50/60Hz, 2.4kw | 220V, 50/60Hz, 2.6kw | 220V, 50/60Hz, 2.6kw |
Machine Weight | 4090x680x1420mm | 4090x720x1420mm | 4090x720x1420mm |
Power Specifications | About 500kg | About 550kg | About 550kg |
Applicable Membrane Material | OPP/CPP,OPP/PE,PET/PE | OPP/CPP,OPP/PE,PET/PE | OPP/CPP,OPP/PE,PET/PE |
Después de recibir su consulta, le enviaremos la cotización lo antes posible.
